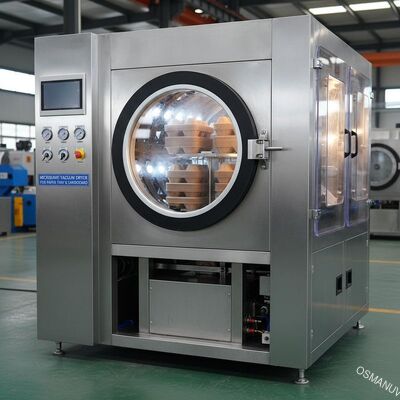

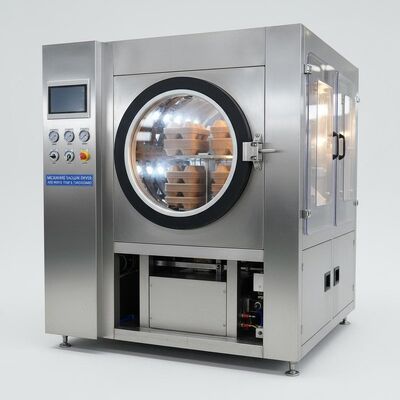

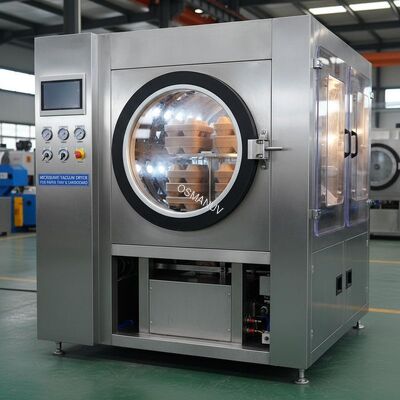

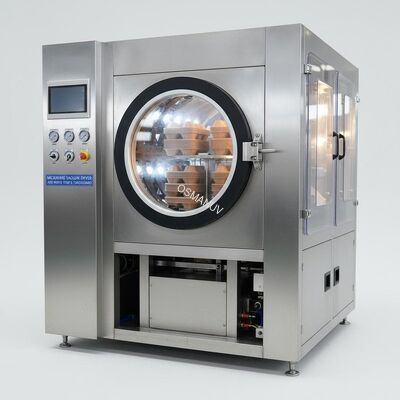

Industrial Microwave Vacuum Dryer For Lunch Box Paper Tray Card Board

Industrial Microwave Vacuum Dryer For Lunch Box Paper Tray Card Board

Product Details:

Place of Origin: China
Brand Name: Osmanuv
Certification: ISO9001
Model Number: OSM-WBHG-1320T

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden box
Delivery Time: 30 work days
Payment Terms: T/T, Western Union
Get Best Price Contact Now

Detail Information

Product Name: Microwave Equipment Rated Input Power: Microwave ≤35kVA
Microwave Power Cooling Method: Oil Immersion And Water Cooling Microwave Tube: Adopt Japanese Panasonic Or TOSHIBA Brand
Microwave Output Power:: 85KW Cooling Method: Magnetron Water Cooling, Microwave Electronic Power Transformer Oil Immersion Water Cooling
Highlight:

Industrial Microwave Vacuum Dryer

,

water cooling Microwave Vacuum Dryer equipment

,

ISO9001 Microwave Dryer equipment

Product Description

Microwave Vacuum Drying Equipment Industrial Microwave Vacuum Dryer For Lunch Box, Paper Tray, Cardboard Factory



The heat source of the industrial dryer comes from the combustion device. This dryer adopts the downstream heating method.



Dryer refers to a mechanical equipment that uses heat energy to reduce the moisture of materials and is used to dry objects. The dryer vaporizes and escapes the moisture in the material (generally refers to moisture or other volatile liquid components) by heating to obtain a solid material with a specified moisture content.



1.Microwave Vacuum Drying Equipment Description:

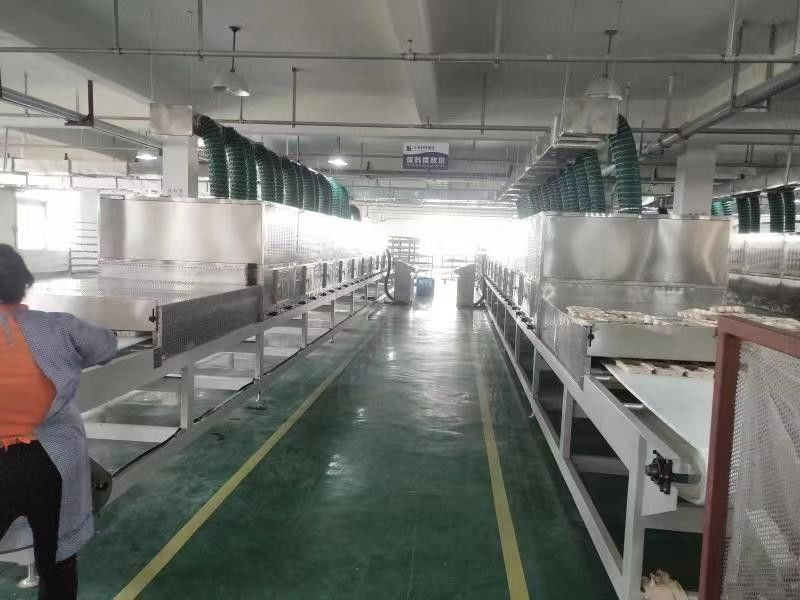

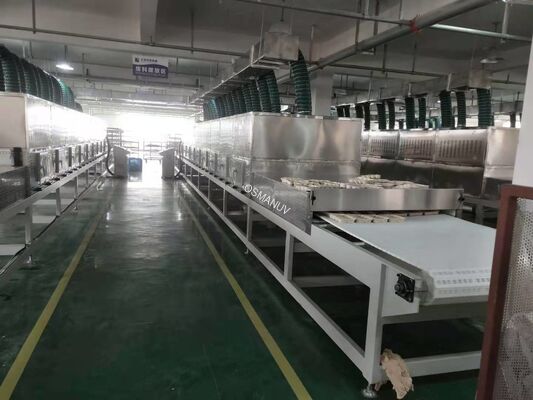

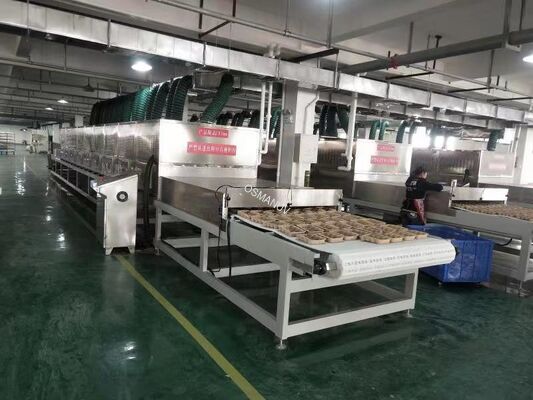

  • The conveyor belt of the whole production line is 850MN from the ground, adjustable 50M.



  • The transmission system is driven by servo motor.



  • Conveyor belt adopts plastic conveyor belt (PP white tank chain conveyor belt) transmission, width :1320mm



  • Operation direction of the production line: the person faces the operation panel from left to right.



  • Line speed of conveyor belt :1-10 meters /min, and adjustable by frequency conversion.



  • The maximum power of each cavity at both ends of the inlet and outlet is no more than 6KW.



2.Flow Description


B: Microwave heating system


(1) Microwave heating is a heating method that relies on the material to absorb microwave energy and convert it into heat energy, so that the material itself is heated at the same time. Because of its high-frequency characteristics, the full wave electromagnetic field is carried out at an amazing speed of billions of times per second. Periodically, after the polar molecules in the material (typically water molecules, proteins, nucleic acids, fats, carbohydrates, etc.) absorb microwave energy, they are arranged in an orderly manner under the action of the microwave electromagnetic field, changing the original Randomly distributed orientation. Under the action of high-frequency electromagnetic field, these polar molecules also make electric field polar motion with the change of alternating electromagnetic field at the same speed, which will cause the movement and rotation of molecules, resulting in frequent collisions between molecules and a lot of friction. Heat, and manifests itself in the material in the form of heat, which leads to a rapid increase in the temperature of the material in a short period of time and rapid drying of water molecules.



(2) Material: 1.5mm SUS 304# stainless steel plate, conforms to microwave production standards, solvent resistant and easy to clean



(3) Features of microwave heating:



a: Penetrating heating, fast heating speed; its penetration distance, microwave heating makes the heated object itself become a heating object, which is called the overall heating method, which does not require heat conduction process, so it can be heated in a short time. When microwave heating, regardless of the shape of the object, each part of the object can usually penetrate the electromagnetic wave uniformly, causing the water molecules inside the object to collide and squeeze each other to generate heat, so that the water inside the object evaporates quickly to achieve the effect of quick drying.



b: Uniform heating: During microwave heating, regardless of the shape of the object, each part of the object can usually penetrate the microwave uniformly to generate heat. Therefore, the uniformity is greatly improved, which can avoid the phenomenon of external coke ingrown, external dry and internal wet, and improve product quality



C. Air cooling system



(1) A square exhaust fan can be used to accelerate the cooling of the baked products with natural wind and shorten the time to enter the next process.



Model number OSM-WBHG-1320 water-based paint drying production line
Input power Three-phase five-wire 380V±10% 50Hz±2% (the zero line must be the same size as the phase line)
Rated input power Microwave≤35kVA
Microwave output power ≥85KW Adjustable power
Microwave frequency 2450MHz±50Hz
Dimensions
(length × width × height)
17530mm×1600mm×1100mm
Number of boxes size: Cabinet: 9 Width: 1170mm
Suppressor size: Suppressor length: 2000mm opening height: 180 mm
Microwave energy feeding method Top feed Aluminum waveguide
Use environment temperature 0~40℃ Relative humidity≤80%
Use environment No corrosive gas around, no conductive dust and explosive gas
Magnetron cooling method Water cooling
Microwave power supply cooling method Oil-soaked and water-cooled
Operation control system PLC programming control with luxurious buttons (with microwave, transmission, temperature control instruments)
Surveillance system The microwave box has a built-in camera, and the operator can see the working status of the product through the display
Microwave tube Adopt Japanese Panasonic or TOSHIBA brand
Power Controller Oil-immersed microwave power controller (30%-100% adjustment)
Microwave leakage safety Comply with GB 10436-1989 hygiene standard for microwave radiation in workplace
Food machinery hygiene and safety Comply with GB 16798-1997 mechanical health and safety indicators
Mechanical and electrical equipment safety Comply with GB/5226.1-2002 mechanical safety mechanical electrical equipment
Safety of electric heating device Comply with GB 5959.6-2008 Safety Part 6 of Electric Heating Device
Total input power of equipment Around 85KW
Microwave output power: 85KW
Temperature control during drying process of water-based paper tray Increase from room temperature to about 80℃
cooling method: Magnetron water cooling, microwave electronic power transformer oil immersion water cooling (water volume and water pressure protection system)
Magnetron life: Continuous work is greater than or equal to 6000-8000 hours
control method: Independent console, 1 Delta PLC controller, 1 set of Weilun touch screen system,
Turn on and turn off the whole machine: Set emergency stop switch, turn on or turn off all functions of the whole machine
Magnetron wire Need more than 4 square wires
Microwave power control; According to process requirements, the microwave power can be adjusted freely
conveyor: Using PP plastic conveyor belt (tank chain conveyor belt) transmission, width: 1320mm
Conveyor belt speed: 1-10m/min, Delta inverter speed is adjustable





Industrial Microwave Vacuum Dryer For Lunch Box Paper Tray Card Board 0



3.FAQ:


Q: Are you trading company or manufacturer?
A: We are a manufacturer owns foreign trade independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I know your machine has good quality?
A: Firstly, we will have your samples for a trial on our machines, and make a video for you to watch the testing, factory visit is also available. Moreover, our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Fully in accordance with the GMP & ISO standard production and our products have passed CE certification for exporting.
Q: What is your Quality Warranty?
A: One year warranty; Lifelong Maintenance and Technical Support.



4.About us:



Dongguan Osmanuv Mechanical Equipment Co., Ltd. is a design, research, development, manufacturing as one of the UV equipment, UV equipment and coating, infrared IR equipment, professional production enterprises, automation equipment, environmental equipment, the implementation of the whole plant export.



At present, the company produces the product variety is complete, has been widely used in external wall insulation integration, inner wall decorative plate plastic spraying, bamboo and wood coating, screen printing, PCB, LCD, LED, electronic components, shoe materials, glass products, adhesive, fiber, vacuum plating UV, water transfer printing and many other fields of industry, and has been praised by customers.



Since its start has been the spirit of "high-tech, high investment, high-quality, high-management" of the modern strategy for your business to provide the best, the best service is our aim and the supreme glory, let us cooperate to carry to create more high-quality products, which all sectors of society to create a better future!



Company has passed ISO9001: 2015 quality management system certification.
