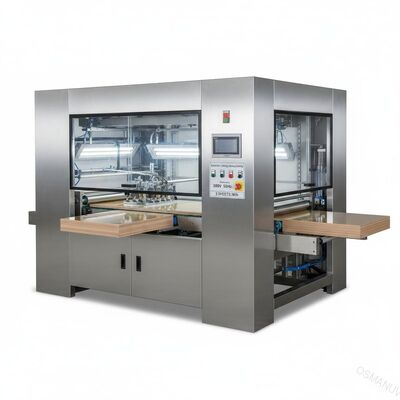

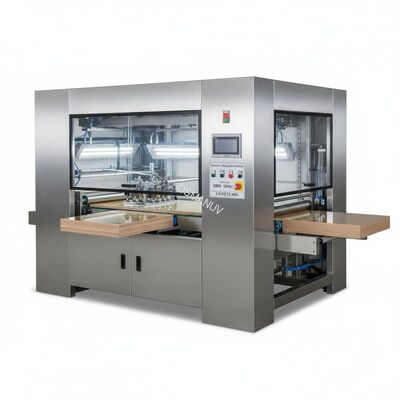

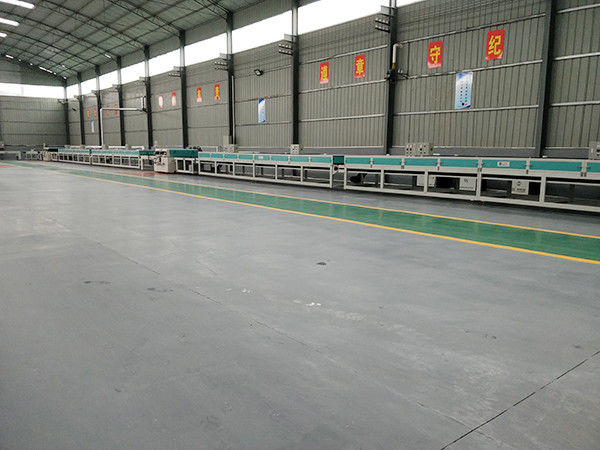

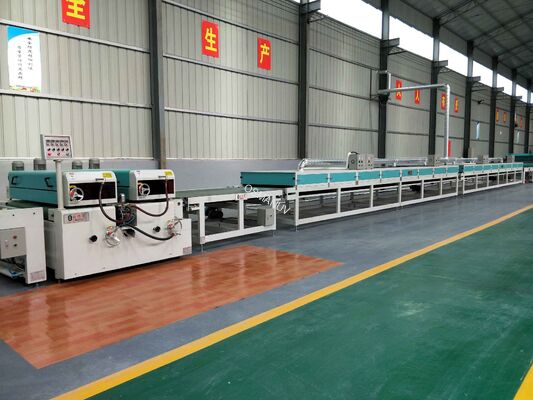

Automatic Loading Varnish Coating Machine 380v 50Hz 3sheets/Min
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Osmanuv |
| Certification: | ISO9001 And CE |
| Model Number: | OSM-TZX-1320GT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Box |
| Delivery Time: | 35-45 Working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | According to customer's demand |
|
Detail Information |
|||
| Features: | It Is Suitable For Various Wood, Plastic, Metal And Other Flat Coatings. The Surface Of The Paint Processed By This Machine Is Smooth, Full And No Color Difference. | Product Name: | Roll Coating Drying Line |
|---|---|---|---|
| Colour: | Computer White + Grass Green | Power: | 380v 50Hz |
| Material:: | The Shell Is Made Of 1.5mm Steel Plate By Bending And Welding, The Surface Is Treated With Liquid Paint, And The Support Wall Is Made Of 20cm Steel Plate (A3 Material) | Effective Width: | 1320mm |
| Highlight: | 3sheets/Min Varnish Coating Machine,380v 50Hz Varnish Coating Machine,3sheets/Min Automatic Loading Machine |
||
Product Description
3sheets/Min Automatic Loading Spray Coating Machine 380v 50Hz
Description:
| ■Gantry suction cup automatic loading machine |
| 1 | Product name | Gantry automatic loading machine |
| 2 | Model | OSM-SLJ-XZ1300A |
| 3 | Dimensions |
3000mm long x 1500mm wide x 1980mm high. (According to actual size) |
| 4 | Scope of application |
Calcium silicate board, glass magnesium board, cement fiber board, board furniture, door board, medium fiber board, particle board and other boards move smoothly during assembly line production. |
| 5 | The surface of the workpiece is absorbed by the vacuum suction cup to move, which is an indispensable supporting equipment for the automatic assembly line of the exterior wall decorative panel and panel furniture manufacturers. | |
| 6 | Power part: | Driven by Yaskawa servo motor. The chain wheel and the chain are connected by a key connection. The linear guide is automatically lubricated. |
| 7 | Control electrical parts | use Chint for control electrical appliances, and Taiwan Delta frequency converters for frequency converters; Omron brand for travel switches and photoelectric switches. The servo controller adopts Yaskawa brand and Yaskawa PLC. |
| 8 | Pneumatic components | All pneumatic components adopt Airtac brand. |
| 9 | Running speed: | the speed can be adjusted according to the process, the speed range is 1-3 sheets/min, the conveying speed: 1-6M/min |
| 10 | Equipped with Japanese Omron PLC program control system, it can effectively control the vacuum suction plate to absorb the workpiece up and down, and rotate parallel or rotate 90° to move to achieve precise suction and discharge, fast and stable. (At the same time, there is a dust removal nozzle beside each suction cup) | |
| 11 |
Specially designed imported linear guides and sliding blocks make the machine run more smoothly and quickly, and work more efficiently. Photoelectric induction energy-saving operation mode, roller conveying speed can be adjusted according to production needs. The digital parameters of each function are displayed on the display screen, which is intuitive, easy to operate, stable and reliable. |
|
| 12 | Mechanical structure: | The front end of the arm can be rotated 90°. |
| ■2.5m PVC conveyor |
| 1 | Product name | PVC conveyor. |
| 2 | Model: | OSM-PV-1320 type. |
| 3 | Features: | suitable for all kinds of panel furniture, calcium silicate board, solid wood composite floor, flat board crafts, bamboo and wood curtains, etc.Workpiece transport for water operations. |
| 4 | Mechanical dimensions | 2500mm long × 1620mm wide × 850mm high. (Can be customized according to actual needs). |
| 5 | Power supply voltage | 220V, 50HZ, three-phase five-wire system. |
| 6 | Material | It is made by bending and welding 1.5mm cold-rolled plates, the surface is painted, and equipped with adjusting foot cups, which is strong and durable. |
| 7 | Conveyor belt | Green 3.0mm PVC belt is used for transmission, width: 1320mm, long service life, stable transportation. |
| ■Fixed thickness sanding machine |
| 1 | Product name | fixed thickness sanding machine |
| 2 | Model: | OSM-DHSG-1320 |
| 3 | Features of the fuselage | the welding of the steel plate bending parts of the fuselage, the weight is large, the operation is stable, and after annealing treatment, it will not be deformed for a long time. |
| 4 | The air cushion is equipped with an automatic stepping open and lower device. When the processed plate passes by, the air cushion automatically presses the sanding belt to grind the plate. When the workpiece passes, the air cushion will automatically open to the natural position. | |
| 5 | The touch screen digital display operating device can display the source of the fault and is convenient for adjustment and setting. | |
| 6 | Conveying characteristics: | The feeding speed should be controlled by an imported stepless speed regulator, with stepless speed regulation. |
| 7 | The conveyor belt adopts imported seamless endless belt to determine the sanding quality; the conveyor belt is supported by air-pressure floating rollers, because it has a certain elastic space, which can accurately control the amount of sanding, and for workpieces with proper bending, unevenness and thickness differences Has a strong processing power | |
| 8 |
The sanding roller adopts an eccentric structure, which can eliminate the influence of the thickness of the sanding belt and accurately set the sanding amount, with stable performance, and a sensor can detect the walking track of the sanding belt; in addition, there is a correction walking control device for stability The sanding is easy to avoid excessive damage to the sanding belt; due to the air cylinder type, the sanding belt is easy to disassemble and replace, and can be adjusted freely. |
|
| 9 |
The sanding head is equipped with a large-diameter knife-shaped sanding roller, and iron rollers, rubber rollers, and grooved rubber rollers can be assembled according to customer needs. |
|
| 10 | Conveyor belt: | Imported strong conveyor belt with 5.3mm thickness, wear-resistant and durable. |
| 1.5m dust removal machine |
| 1 | Product name: | Dust removal machine. |
| 2 | Model | OSM-FC-1320 type. |
| 3 | Features: | It can effectively and automatically remove the dust left by the plate due to sanding, which greatly improves the coating quality of the product. |
| 4 | Mechanical dimensions | 1500mm long × 2050mm wide × 1300mm high. (According to the actual size). |
| 5 | Effective working size | a, effective width: 1320mm; b, thickness: 3-80mm; c, length (shortest): 300mm. |
| 6 | Pressure roller: | Diameter: ￠60mm, length 1350mm. |
| 7 | Medium pressure fan power | 0.55kw×2 units. |
| 8 | Material: | The shell is made of cold-rolled steel plate, the thickness is 1.5mm, and the surface is treated with electrostatic powder paint |
| 9 | Dust removal device: | The brush roller is made of high-quality sisal fiber, diameter: ￠150mm, length: 1350mm. It is also equipped with a powerful blower, which has a good dust removal effect. The thickness and length of sisal can be customized according to customer requirements. The transmission adopts V-belt transmission, which effectively reduces the vibration during its operation and makes the machine run more smoothly. The bearing adopts KHV bearing, Taiwan Delta frequency converter controls the speed of the glue roller, the pressure roller adopts 45# seamless steel pipe after CO² welding, the surface is covered with glue, and the jitter is less than 0.005mm. The lifting seat adopts cast iron dovetail groove type, so that the rigidity and precision between the coating head and the frame are guaranteed, and there is no deformation. |
| 10 | Conveyor belt: | The Dutch green PVC flat belt is adopted, which has stable conveying and long service life. |

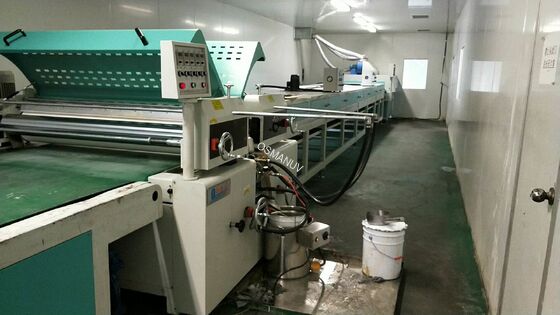

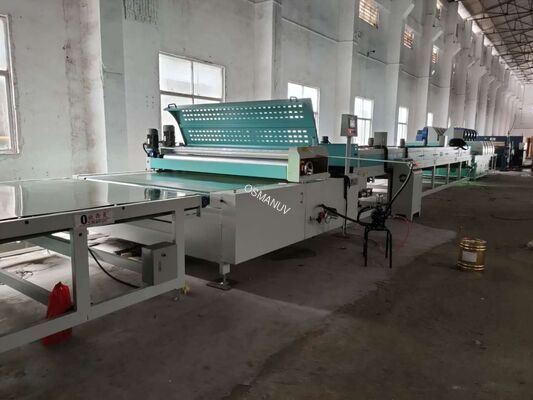

| ■Full precision double roll coating machine |
| 1 | Product name: | Full-precision double-roll coating machine (positive and negative roller). |
| 2 | Model | OSM-GT-1320Ⅱ. |
| 3 | Features | It is suitable for all kinds of wood, plastic, metal and other flat coatings. The surface of the paint processed by this machine is smooth, full and no color difference. |
| 4 | Mechanical dimensions | 1800mm long × 2300mm wide × 1520mm high. (According to actual size) |
| 5 | Effective working size | a, effective width: 1320mm; b, thickness: 3-80mmc, length (shortest): 300mm. |
| 6 | Material | The shell is made of 1.5mm steel plate by bending and welding, the surface is treated with liquid paint, and the supporting wall is made of 20cm steel plate (A3 material). |
| 7 | Coating part |
Double-group roll coating system is adopted, each group system includes steel roller and silicone wheel, and each group roll coating system can be lifted and lowered independently. |
| 8 | Coating roller | Diameter: ￠250mm, length: 1470mm, made of high-quality Japanese silica gel, wear-resistant, good elasticity, hardness can be customized according to customer requirements (between 30 degrees and 50 degrees), and can withstand various solvents. High-quality coupling transmission, bearing adopts KHV bearing, Taiwan Delta frequency converter controls the speed of rubber roller. |
| 9 | Measuring wheel | diameter: ￠150 mm, length: 1470mm, using 45# seamless steel pipe welded by CO², the surface is finely ground, dynamic balance, the runout is less than 0.05mm, and the surface is electroplated and polished to achieve a bright effect. Direct plug-in connection transmission can truly be integrated with the drive motor. |
| 10 | Conveying roller | power: 1.5KW, diameter: ￠130 mm, length: 1320mm. The 45# seamless steel pipe is welded by CO², and the surface is finely ground and dynamically balanced. The runout is less than 0.05mm. The surface is hard chrome electroplated and polished to achieve a bright effect. Direct plug-in connection transmission can truly be integrated with the drive motor. |
| 11 | Conveyor belt: | Green PVC flat conveyor belt is adopted, which has stable conveying and long service life. |
| ■2.5m centering conveyor |
| 1 | Product name | Roller conveyor. |
| 2 | Model | OSM-GL-1320W. |
| 3 | Features: | Suitable for all kinds of panel furniture, calcium silicate board, solid wood composite floor, flat board crafts, bamboo and wood curtains, etc.Workpiece transport for water operations. |
| 4 | Mechanical dimensions | 2500mm long × 1620mm wide × 850mm high. (Can be customized according to actual needs). |
| 5 | Power supply voltage | 220V. |
| 10m infrared dryer |
| 1 | Product name: | 10m infrared dryer |
| 2 | Model: |
OSM-IR-1320 |
| 3 | Specifications: | 10000mm long × 1650mm wide × 1400mm high. |
| 4 | Material | The outer shell of the heating zone is made of A3 board, with insulation cotton in the middle. |
| 5 | Lamp | adopts Taiwanese quartz heating tube with good heating effect. |
| 6 | Effective leveling width: | 1320mm. |
| 7 | Conveyor belt: | adopt chain stainless steel string rod type. |
| 8 | Transmission system: | The transmission motor adopts Taiwan TWT gear reducer. |
| 9 | Control system: | adopt Taiwan Delta frequency converter, the speed can be adjusted 5-20 meters per minute, and there is a speed digital display. |
| 10 | Control system | BKC thermostat is used to control the temperature required for work, temperature: normal temperature -100℃ adjustable. |
| ■Laminating Machine |
| 1 | Product name | Laminating machine |
| 2 | Model: | 1320-FMJ-Ⅰ |
| 3 | Features | This machine is suitable for post-treatment procedures after various flat surface coatings. A protective layer is applied to the painted surface after coating. Effectively prevent damage to the watch during transportation. |
| 4 | Effective working width: | . 0-1320 mm |
| 5 | Effective conveying thickness |
2-80 mm |
| 6 | Minimum conveying length | 300 mm, conveying speed: 5-20 m/min |
| 7 | Diameter of driving roller: | ￠150 mm, diameter of auxiliary driving roller: ￠150 mm |
| 8 | Driving roller length: | 1320 mm, auxiliary driving roller length: 1320 mm |
| 9 | Machine length: | 500 mm, machine direction: from left to right |
FAQ
Q: Are you trading company or manufacturer?
A: We are a manufacturer owns foreign trade independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I know your machine has good quality?
A: Firstly, we will have your samples for a trial on our machines, and make a video for you to watch the testing, factory visit is also available. Moreover, our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Fully in accordance with the GMP & ISO standard production and our products have passed CE certification for exporting.
Q: What is your Quality Warranty?
A: One year warranty; Lifelong Maintenance and Technical Support.
■Full precision double roll coating machine
