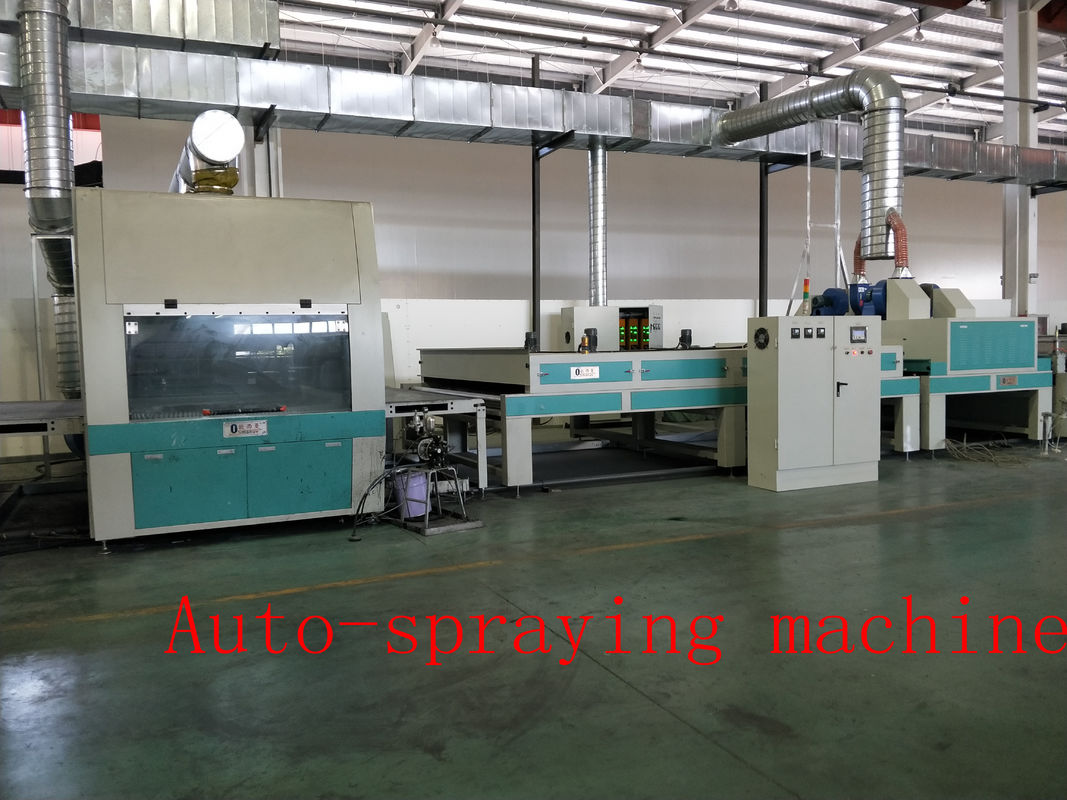

Fully Automatic Spray Coating Machine for Wood & Glass – Customizable Width, Gun Configuration & Conveyor Speed

Fully Automatic Spray Coating Machine for Wood & Glass – Customizable Width, Gun Configuration & Conveyor Speed

Product Description

This fully automatic spray coating machine is designed for high-precision painting applications on panel furniture, solid wood doors, decorative panels, photovoltaic glass, mesh fabrics, and craft products. The machine supports PU, NC, water-based paints, and color glazes. Equipped with Japanese Iwata automatic spray guns and a high-efficiency air filtration system, it ensures uniform coating, minimal paint waste, and a dust-free spraying environment. With PLC-controlled operation and fully customizable configurations, this system delivers consistent finish quality and operational efficiency for medium to large-scale manufacturing environments.

Technical Parameters

Application

Ideal for spray coating in the following industries:

• Panel furniture – Cabinets, tables, chairs

• Solid wood doors – Interior and exterior doors

• Decorative panels – Wall panels, ceiling panels

• Photovoltaic glass – Anti-reflective coating

• Mesh fabrics – Plane mesh, upholstery fabrics

• Craft products – Decorative items, art pieces

• Cabinet doors – Kitchen and bathroom cabinets

Supports PU, NC, water-based paints, and color glaze applications.

Customization

The automatic spray coating machine is fully customizable to meet specific production requirements:

• Customizable effective width – Available from 300 mm to 1300 mm

• Customizable spray gun quantity and configuration – Up to 8 guns available

• Adjustable spray gun angle – Manual or motorized adjustment options

• Customizable conveyor system – Roller, mesh belt, or Teflon belt options

• Custom control system – PLC programming with multiple recipe storage

• Custom housing color – Color card to be confirmed with client

• Custom air filtration – Up to Class 1000 filtration available

• Custom exhaust integration – Designed for seamless connection to customer’s ventilation system

Features

• Japanese Iwata automatic spray guns – High-precision, uniform coating application

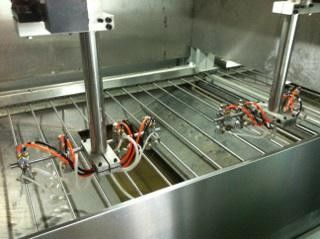

• Fixed spray guns with manual angle adjustment – Flexible positioning for different product shapes

• OMRON sensor-controlled gun travel – Ensures uniform coating and paint savings

• SUS304 stainless steel inner wall – Easy to clean, dust-resistant, corrosion-resistant

• Class 10,000 high-efficiency air filter – Maintains dust-free spraying environment

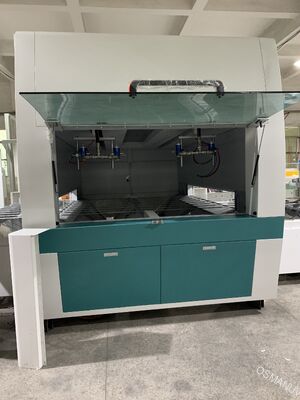

• Glass viewing window – Allows real-time monitoring of spraying process

• PLC control with HMI – Intuitive operation, recipe storage, and real-time monitoring

• Paint recovery system – Minimizes waste and keeps workpiece backs clean

• Safety features – Emergency stop, overload protection, and safety interlocks

Support and Services

• Customization consultation – Tailored design based on product type, coating material, and production capacity

• Installation and commissioning – On-site or remote support

• Operator training – Comprehensive training for operation, maintenance, and safety protocols

• Technical support – Lifetime remote assistance

• Spare parts supply – Genuine replacement parts, spray guns, pumps, and filters

• Warranty – 1-year standard warranty with extended options available

• Color card confirmation – Pre-production color approval for outer shell

Packing and Shipping

• Packing: Wrapped in protective film, secured with wooden pallet (ISPM 15 compliant), reinforced edges for export

• Shipping: By sea, air, or land based on destination

• Lead Time: 30–45 days after customization confirmation

• Documentation: Operation manual, electrical diagrams, and CE certification (if applicable)

FAQ

Q1: What types of paint can be used with this machine?
The machine supports PU, NC, water-based paints, and color glazes. Custom configurations are available for other coating types.

Q2: Can the spray gun configuration be customized?
Yes, the spray gun quantity and configuration are fully customizable. Standard configuration includes 4 guns, with options for up to 8 guns.

Q3: What is the maximum workpiece width the machine can handle?
The standard effective width is 1300 mm, and this can be customized based on your product requirements.
