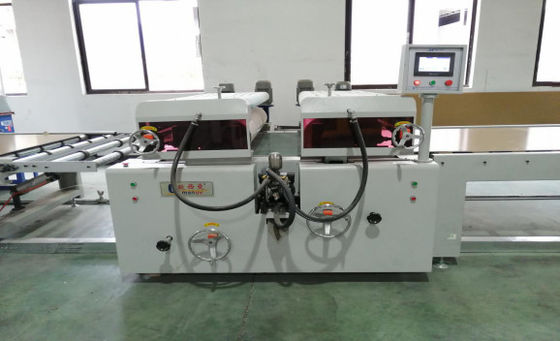

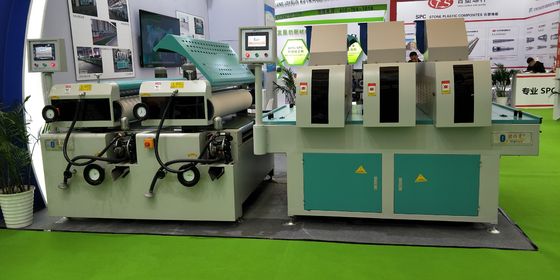

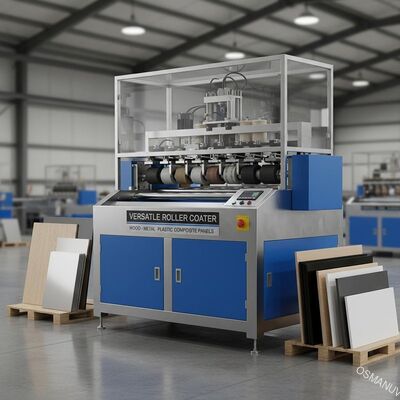

Versatile Multi-Purpose Roller Coating Machine for Wood, Metal, Plastic & Composite Panels

Versatile Multi-Purpose Roller Coating Machine for Wood, Metal, Plastic & Composite Panels

 Composition of Production Line

A complete, ready-to-operate coating line typically includes:

1. Infeed Conveyor Table: Powered roller conveyor with adjustable guide rails.

2. Pre-Coating Surface Preparation (Optional): Dust removal brush or ionizing air bar.

3. The Core Coating Unit: Features a fully customizable roll configuration (single-roll applicator or double-roll reverse/forward coater).

4. Post-Coating Conveyor Section: Allows for initial leveling.

5. Drying/Curing Zone (Optional Integration): Can be linked to IR (Infrared) or hot air drying tunnels.

6. Control Cabinet: Centralized PLC control with user-friendly Touchscreen HMI (Human-Machine Interface).

2. Product Description

Our Versatile Multi-Purpose Roll Coater is engineered to deliver uniform, high-quality coatings across a vast range of flat substrates, including wood panels, metal sheets, plastic boards, and composite materials. Its defining feature is the highly customizable roller system, allowing you to choose between a cost-effective single-roll setup or a precision double-roll (reverse) configuration for optimal control over film thickness and quality. Built for durability and ease of use, it is the ideal workhorse for factories handling diverse product lines.

3. Technical Parameters

4. Application

• Applying decorative paints, primers, or varnishes on furniture panels and cabinet doors.

• Coating protective layers or adhesives on metal sheets and aluminum composite panels.

• Applying functional coatings (anti-scratch, UV-protective) on plastic or acrylic sheets.

• Uniform glue application for laminating processes in panel production.

5. Customization

This machine is built around flexibility. Key customization options include:

• Core Roll System: The fundamental choice between a Single-Roll or Double-Roll configuration to match your quality and budget needs.

• Machine Width & Height: Built to your specific maximum panel size and line integration requirements.

• Roller Material & Hardness: Selected to ensure perfect compatibility with your coating chemicals (water-based, solvent-based, UV coatings, adhesives).

• Integration & Automation: Can be customized to connect seamlessly with your existing sanding, drying, or stacking systems.

6. Feature

• Unmatched Versatility: Handle wood, metal, plastic, and more with quick changeover capabilities.

• Precision Customization: The cornerstone of our design—choose the exact roller configuration (single or double) that your process demands.

• High Efficiency & Low Waste: Roll coating offers over 90% material transfer efficiency, drastically reducing waste compared to spraying.

• Robust & Easy Maintenance: Durable construction with easy-access components for simple cleaning and servicing.

7. Support and Services

• Consultation: Free technical assessment to recommend the optimal configuration (single vs. double roll) for your application.

• Installation & Training: On-site commissioning and comprehensive operator training provided by our engineers.

• After-Sales: 18-month warranty on the machine, lifetime technical support, and a reliable supply of genuine spare parts.

8. Packing and Shipping

• Packing: The machine is disassembled into major modules, securely fastened in an export-worthy wooden crate with moisture-proof lining.

• Shipping: We handle all logistics, shipping via sea freight to major ports worldwide under standard Incoterms (FOB, CIF, etc.). Air freight is available for urgent orders.

9. FAQ

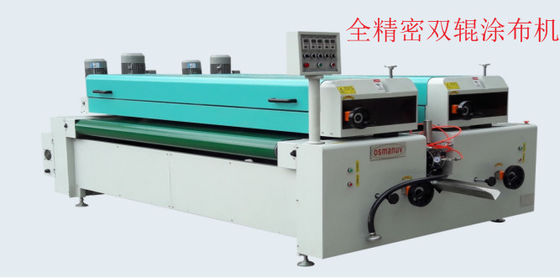

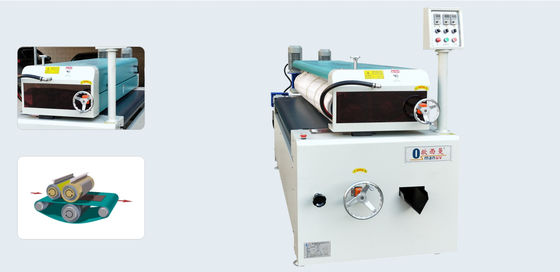

Q1: What's the main difference between a single-roll and a double-roll configuration?
A1: A single-roll system is simpler and more economical, suitable for less viscous coatings and where ultra-precise thickness control is not critical. A double-roll (reverse coater) system uses a separate metering roller to precisely control the amount of coating transferred, ideal for high-viscosity materials or when exact, uniform film thickness is required.

Q2: Can I upgrade from a single-roll to a double-roll system later?
A2: The frame is designed with future expansion in mind. While it involves significant changes, a field upgrade is technically possible. We strongly recommend discussing your long-term plans during the initial consultation to design the most cost-effective solution.

Q3: How do I determine which roller material (polyurethane, silicone, etc.) is best?
A3: The choice depends on the chemical compatibility with your coating and the required surface finish. Our engineers will advise you based on the coating specifications you provide. We offer samples for testing.

Q4: What is the lead time for a customized machine?
A4: For standard customizations (width, roller type), lead time is 8-10 weeks. Highly unique configurations may require 12-14 weeks for engineering and manufacturing.

Q5: Do you provide samples for coating tests?
A5: Yes. We can arrange for you to send your actual panels and coatings to our demo facility for a test run on a similar configuration machine. This is the best way to verify results before purchase.
