Fully-Automated Continuous Laminating Production Line for Eco-Friendly PVC Film | Designed for MDF and Particleboard
Product Details:
| Place of Origin: | China |
| Brand Name: | OSMANUV |
| Certification: | ISO9001 |
| Model Number: | OSM-FM-1320 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Box |
| Delivery Time: | 30~45 Days |
| Payment Terms: | T/T |
| Supply Ability: | Negotiation |
|
Detail Information |
|||
| Main Power: | 22.5kw | Conveying Speed: | 1-20 M/min |
|---|---|---|---|
| Machinery Test Report: | Provided | Automatic Gra: | Automatic |
| Hardness: | Soft | Carton Cube: | 8.5m³ |
| Paper Thickness: | 100-500gsm | System: | PLC Programming |
| Highlight: | fully-automated PVC film laminating machine,eco-friendly MDF laminating production line,continuous particleboard film laminating machine |
||
Product Description

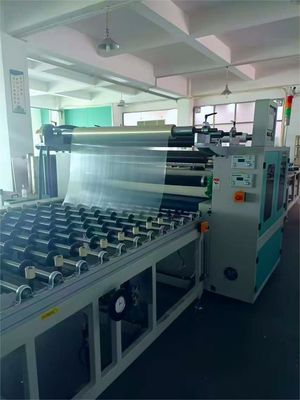

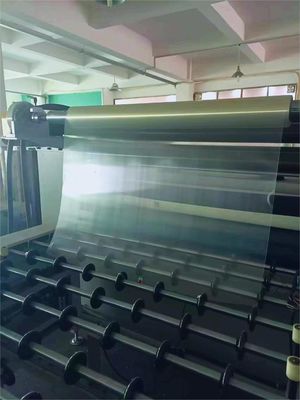

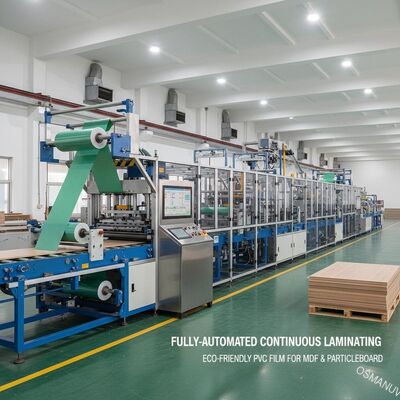

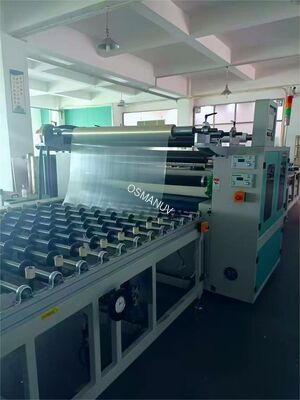

This standard film laminating line comprises several key sections: an automatic film feeding and alignment unit, a pre-pressing section, a main heated pressing unit (with one or multiple rollers/platens), a cooling zone, and a precision trimming station. It is designed for continuous, roll-to-sheet or roll-to-roll operation.
This Automatic Hot Press Laminating Machine is engineered for bonding decorative films (such as PVC, PP, PET) or papers onto flat panel substrates like medium-density fiberboard (MDF), particleboard, plywood, and solid wood panels. It ensures a bubble-free, high-strength, and durable finish, widely used for manufacturing furniture panels, cabinet doors, interior decoration panels, and door skins.
| Parameter Category | Specification |
|---|---|
| Model | FLLM-1300H (Standard) [Customizable] |
| Max. Working Width | 1300 mm [Customizable to 2200mm or more] |
| Applicable Substrate Thickness | 2 mm ~ 50 mm |
| Production Speed | 5 ~ 25 meters/minute (adjustable) |
| Heating Method | Electric heating roller or oil-heated platen (optional) |
| Heating Temperature Range | Room temperature ~ 180°C |
| Main Pressure | 0 ~ 15 Tons (adjustable) |
| Total Installed Power | Approx. 45 kW (varies with configuration) |

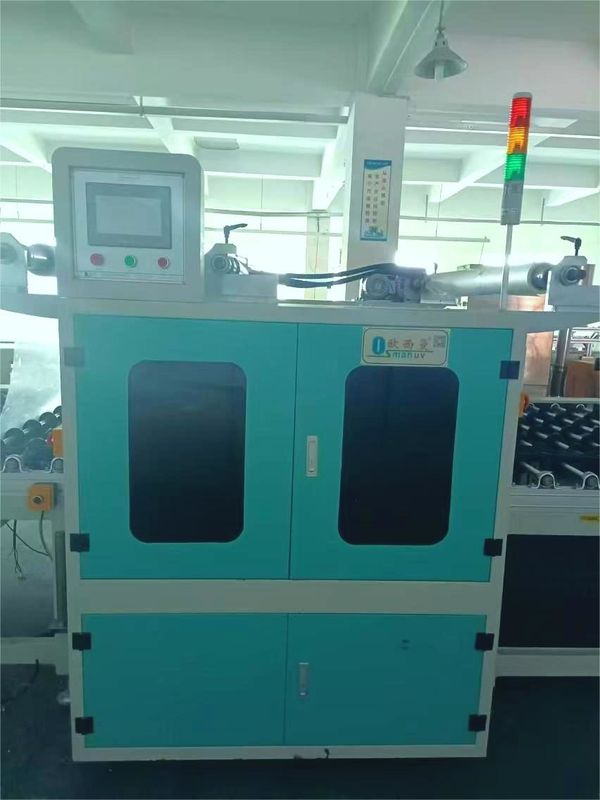

| Control System | PLC + Touchscreen HMI |
| Power Supply | 380V / 50Hz / 3Phase |
Ideal for laminating decorative surfaces onto panels used in: Furniture manufacturing (cabinet doors, side panels), Door production (interior door skins, flush doors), Interior decoration (wall panels, ceiling panels), Display and fixture making.
We offer customizable solutions to fit specific factory layouts and product needs. Key customizable aspects include: the machine width and length, heating system type (for specific films), pressure system (for delicate substrates), integration of automatic feeding/unloading stackers, and specialized trimming tools for unique panel edges.
- High-Efficiency Bonding: Combines precise heat and pressure control for strong, permanent lamination in a single pass.
- Superior Finish Quality: Ensures a smooth, bubble-free, and wrinkle-free surface, enhancing product aesthetic value.
- Versatile Material Compatibility: Handles a wide range of films (PVC, PP, PETG) and adhesive-coated papers.
- User-Friendly Operation: Automated controls simplify setup and reduce manual labor and skill requirements.
- Robust Construction: Built for stable performance and durability in industrial environments.
- On-site installation supervision and commissioning
- Comprehensive operational and maintenance training for your team
- One-year warranty covering major components and workmanship
- 24/7 remote technical support and readily available spare parts supply
Major modules are disassembled and securely packed in weatherproof wooden crates with internal bracing and moisture barriers. Shipping terms (FOB, CIF, DAP, etc.) are negotiable based on destination. Standard lead time is 10-12 weeks after final design confirmation and deposit.
