(Modular Industrial Panel Smart Coating Equipment - Supports Multi-Functional Coatings & Flexible Customization)
Product Details:
| Place of Origin: | China |
| Brand Name: | OSMANUV |
| Certification: | ISO9001 |
| Model Number: | OSM-PT-1320 |
| Document: | automatic spray coating mac...ne.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Box |
| Delivery Time: | 30~45 Days |
| Payment Terms: | T/T |
| Supply Ability: | Negotiation |
|
Detail Information |
|||
| Core Components: | PLC, Bearing, Motor, Pump | Model: | OSM-PT-1320 |
|---|---|---|---|
| Spray Gun Diameter: | 1.0-1.5mm | Power: | 10 KW |
| Color: | Computer White / Green / Blue | Coating Material: | IR |
| Coatingtype: | Liquid, Powder | Control System: | PLC/HMI |
| Highlight: | modular industrial spray coating machine,smart coating equipment with customization,multi-functional spray coating machine |
||
Product Description
(Modular Industrial Panel Smart Coating Equipment - Supports Multi-Functional Coatings & Flexible Customization)
Product Description:

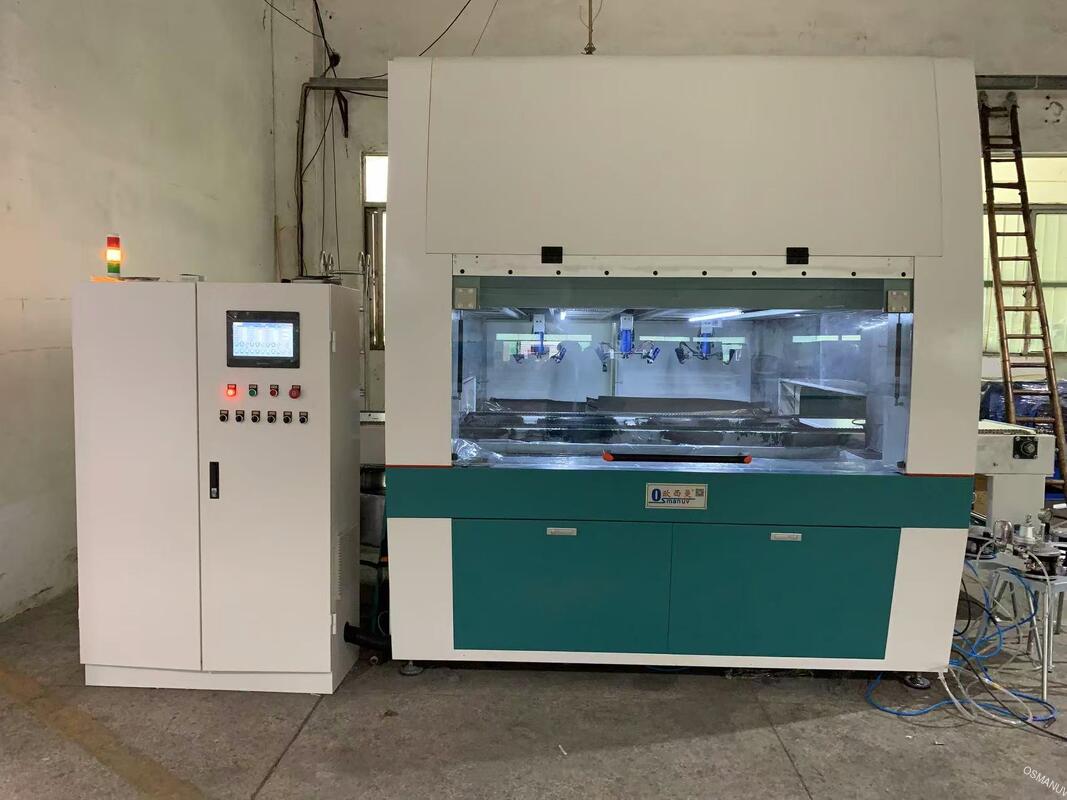

This high-efficiency automatic spraying production line is engineered specifically for coating pulp-molded products (such as tableware, packaging, trays) and industrial panels. It integrates pre-treatment, precision spraying, automatic drying, and UV/solidification units into a seamless workflow. The system is highly customizable, allowing for adjustments in spraying width, conveyor speed, and drying temperature to accommodate diverse product dimensions and coating requirements. It ensures uniform, high-quality finishes with minimal waste and maximum throughput.
Technical Parameters:
| Parameter Category | Specification | Details & Customizability |
|---|---|---|

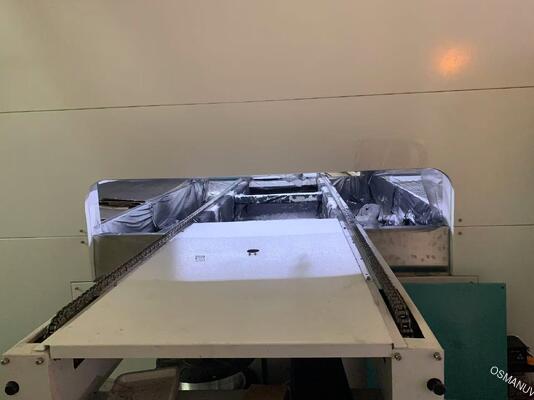

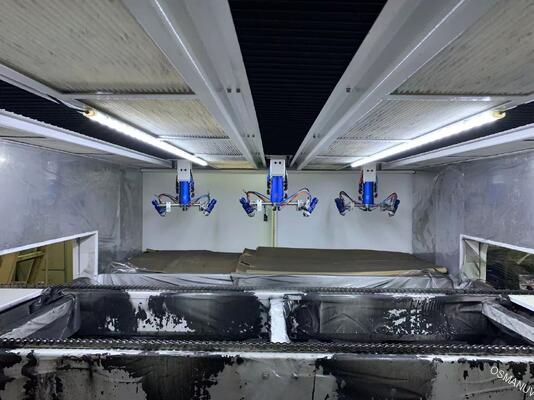

| Line Composition | Standard Modules | Conveyor System, Electrostatic/Precision Spray Guns, Drying Tunnel, UV Curing Unit, Control Cabinet, Exhaust & Filtration. Customizable modules (e.g., pre-heating, dust removal, multi-coat stations) available. |
| Spraying Width | 600mm - 1800mm | Customizable to match product size. |
| Conveyor Speed | 0.5 - 5 m/min | Variable speed control for different coating thickness and drying needs. |
| Drying Method | IR Heating / Hot Air | Customizable heating source and temperature range (Ambient - 120°C). |
| Power Supply | 380V / 50Hz (Standard) | Can be customized for different regional standards (e.g., 440V/60Hz). |
| Control System | PLC + Touchscreen HMI | Programmable recipes for different products. |
| Coating Material | Water-based / Solvent-based | Compatible with various coatings; material delivery system can be customized. |
Application:
-
Pulp molded products: food containers, electronic packaging, seedling pots, disposable tableware.
-
Industrial panels: fiberboard, MDF, decorative panels, composite boards.
Customization:
We offer extensive customization options including line layout, spraying width and height, number of spray guns, specific drying/curing technology (IR, UV, hot air), and integration with existing factory automation systems.
Key Features:
-
High Efficiency & Automation: Reduces labor and ensures consistent output.
-
Precision Spraying: Minimizes overspray and coating material waste.
-
Integrated Drying: Compact design saves floor space.
-
Easy to Operate & Maintain: User-friendly HMI and accessible components.
-
Environmentally Friendly Options: Configurable with high-efficiency filtration systems.
Support and Services:
-
Pre-sales: Feasibility analysis and solution design.
-
Installation & Commissioning: On-site guidance by engineers.
-
Training: Comprehensive operation and maintenance training.
-
After-sales: Remote technical support, spare parts supply, and maintenance contracts.
Packing and Shipping:
-
Professional export wooden crates or plywood cases for all major components.
-
Internal waterproof and shockproof packaging.
-
FOB/CIF terms available; shipped via sea or air freight.
FAQ:
-
Q: Can this line handle different product sizes in one batch?
A: The conveyor and spraying system can be customized to accommodate a range of sizes, but for optimal quality, tooling or program changeovers are recommended for vastly different shapes. -
Q: What coatings are compatible?
A: It is compatible with most water-based and solvent-based coatings. The material supply system may require customization for highly viscous or specialty coatings. -
Q: Is the line easy to clean for color change?
A: Yes, the spray gun system is designed for easy cleaning. Quick-change features are available as a customizable option. -
Q: What is the lead time?
A: Standard configuration lead time is 30-45 days. Customized solutions may require additional time based on complexity.
