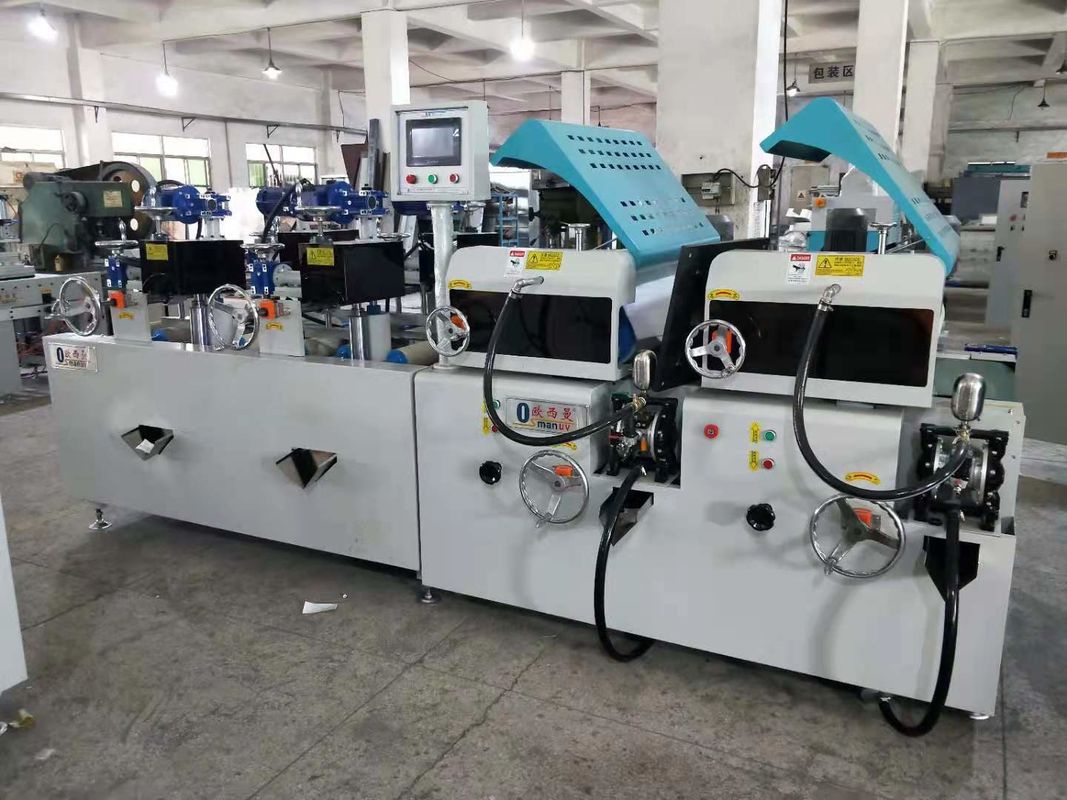

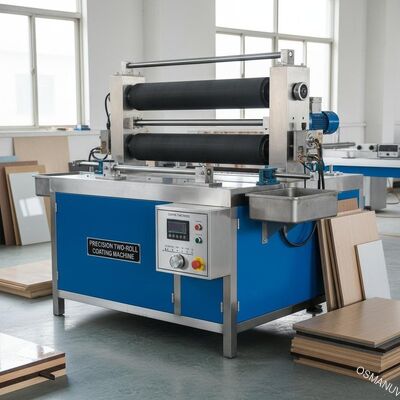

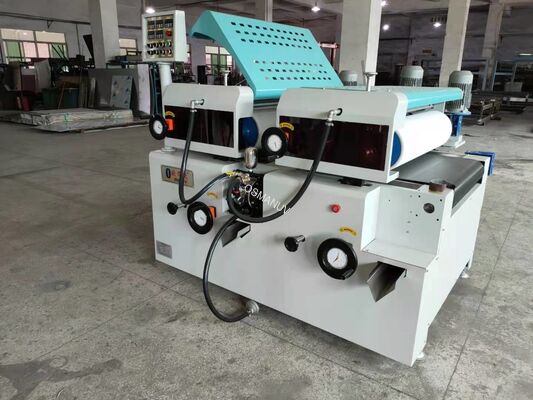

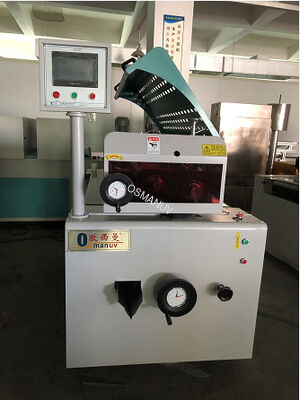

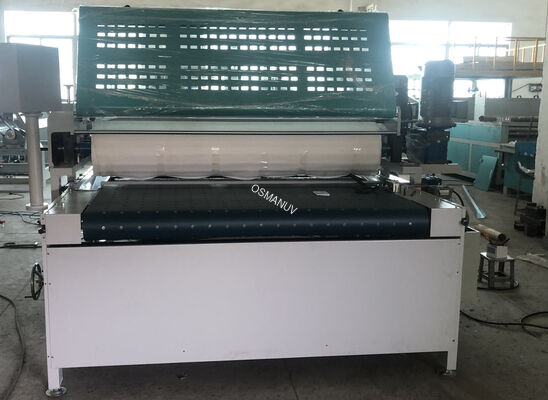

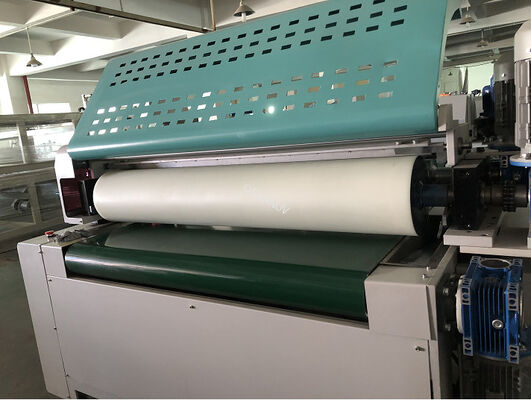

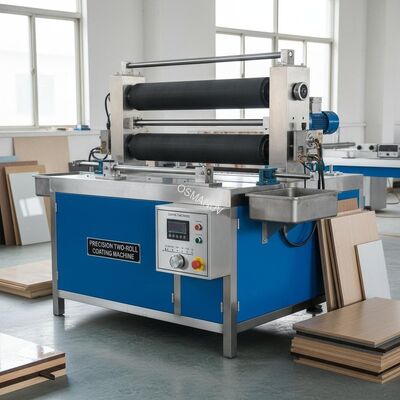

Precision Two-Roll Coating Machine for PVC, Furniture, and Metal Panels with Customizable Coating Thickness
Product Details:
| Place of Origin: | China |
| Brand Name: | OSMANUV |
| Certification: | ISO9001 |
| Model Number: | OSM-GT-1320 |
| Document: | Two-roller coating machine.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Box |
| Delivery Time: | 30~45 Days |
| Payment Terms: | T/T |
| Supply Ability: | Negotiation |
|
Detail Information |
|||
| Voltage: | 380V | Application: | Commodity |
|---|---|---|---|
| Machinery Test Report: | Provided | Effective Spraying Width: | 1320mm |
| Type: | Drying Machine | Spray Gun: | Adopt American GRACO Automatic Spray Gun |
| Applicable Industries: | Manufacturing Plant | Product: | SPC Floor |
| Highlight: | PVC two-roll coating machine,customizable thickness roller coater,metal panel coating equipment |
||
Product Description
Precision Two-Roll Coating Machine for PVC, Furniture, and Metal Panels with Customizable Coating Thickness
Product Overview
This Two-Roll Coating Machine is an industrial-grade system engineered to apply perfectly uniform and consistent coatings on a wide range of rigid, flat substrates, including PVC boards, furniture panels, and metal sheets. It is the ideal solution for manufacturers seeking to enhance product aesthetics, functionality, and durability with a precise, efficient, and highly customizable finishing process.
Production Line Configuration
The integrated system is a modular line typically consisting of:
- Loading/Unwinding Station: For automatic or manual panel feeding
- Pre-Treatment Zone (Optional): For surface cleaning, plasma treatment, or pre-heating
- Two-Roll Coating Station: The core unit with precision-engineered rolls for controlled coating application
- Drying/Curing Tunnel: A multi-zone oven (IR, UV, or Hot Air) for setting the coating
- Handling & Conveyor System: A synchronized transport mechanism
- Control Panel: Centralized PLC-based interface for full process control and monitoring
Technical Specifications
| Parameter | Specification | Customization Option |
|---|---|---|
| Coating Method | Precision Two-Roll Reverse/Forward Coating | Roll material and hardness are customizable |
| Control System | PLC with Touchscreen HMI | Software, data logging, and control logic are customizable |
| Max Substrate Width | Standard: 1300mm | Maximum width is customizable (up to 2500mm) |
| Coating Thickness Range | Adjustable, 5-200 microns | Specific control systems for tighter tolerances are customizable |
| Applicable Materials | PVC, MDF, Particle Board, Metal Sheets | Configuration can be customized for other rigid substrates |
| Drying Method | Electric/Steam/Gas Heating (IR, Hot Air) | Drying method and length are fully customizable |
| Power Requirement | Customizable based on final configuration | Designed to match local voltage and frequency standards |
| Footprint (LxWxH) | Varies with configuration | Layout is customized to fit your production space |
Applications
- PVC Boards: Applying decorative films and protective coatings
- Furniture Panels: Coating for wood grain printing, priming, and top-coating
- Metal Sheets: Application of anti-corrosion primers and decorative paints
- Other Rigid Substrates: The system can be customized for composite panels and engineered plastics
Customization Options
Customization is a fundamental aspect of our machine design. We offer extensive options to ensure the system integrates perfectly into your operation, including:
- Tailored Rollers: Engineered for specific coating viscosities and application requirements
- Modular Line Layout: The entire production line composition can be adapted to your factory floor space and specific process flow
- Specific Coating & Drying Solutions: The system is customized to handle various coatings (UV, water-based, solvent-based) with appropriate drying/curing technology
- Integration Services: The machine can be customized to interface with your existing upstream and downstream equipment
Key Features
- Precision Coating: Ensures consistent, uniform film thickness across the entire panel width
- Advanced PLC Control: User-friendly interface for saving and managing countless customized recipes
- Robust Construction: Built with heavy-duty components for reliable, 24/7 industrial performance
- High Material Transfer Efficiency: Minimizes coating waste, reducing operational costs
- Quick Changeover: Facilitates rapid transitions between different jobs and customized settings
Support and Services
- Installation & Commissioning: On-site setup and calibration by our expert engineers
- Comprehensive Training: In-depth training for your operators and maintenance team
- Dedicated Technical Support: Lifelong remote and on-site troubleshooting and technical assistance
- Warranty & Spare Parts: Full warranty coverage and guaranteed supply of genuine spare parts
Packing and Shipping
- Packing: The machine is securely crated in export-standard wooden cases with weather-proof and shock-absorbent materials
- Shipping: We ship worldwide. Shipping terms (FOB, CIF, etc.) are customized based on customer location and requirements
Frequently Asked Questions
Q: What is the primary advantage of a two-roll coater for PVC and metal panels?
A: It provides superior control over coating thickness and uniformity, especially for high-viscosity materials, resulting in a flawless finish and significantly reduced material consumption.
Q: Can this machine handle different coating types, like UV-curable and water-based paints?
A: Yes, the machine's components (rolls, cleaning systems) and the drying/curing section are customized during the ordering process to handle a wide range of coating chemistries safely and effectively.
Q: How customizable is the drying process for different coating formulas?
A: The drying/curing tunnel features fully customizable temperature, UV intensity, and airflow profiles, allowing you to create the perfect curing environment for any specific coating and production speed.
Q: What technical support do you offer after purchase?
A: We provide lifelong technical consultation, comprehensive operator training, and responsive remote and on-site support to ensure your machine delivers peak performance throughout its lifecycle.
