Food-Grade Microwave Sterilization and Drying System | Preserving Nutrition & Enhancing Shelf Life
Product Details:
| Place of Origin: | China |
| Brand Name: | Osmanuv |
| Certification: | ISO9001 |
| Model Number: | OSM-WBHG-1320T |
| Document: | microwave drying equipment.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden box |
| Delivery Time: | 45 days |
| Payment Terms: | T/T |
| Supply Ability: | Negotiation |
|
Detail Information |
|||
| Material: | SPC/LVT/WPC Floor | Head Qty: | Two/three/four |
|---|---|---|---|
| Acceptable Thickness: | 0.10~0.6 Mm | Cooling Way: | Air Cooling |
| Packing: | Standard Wooden Case | Warranty: | 1 Year |
| Control System: | PLC | ||
Product Description
Food-Grade Microwave Sterilization and Drying System | Preserving Nutrition & Enhancing Shelf Life
1. Composition of Production Line

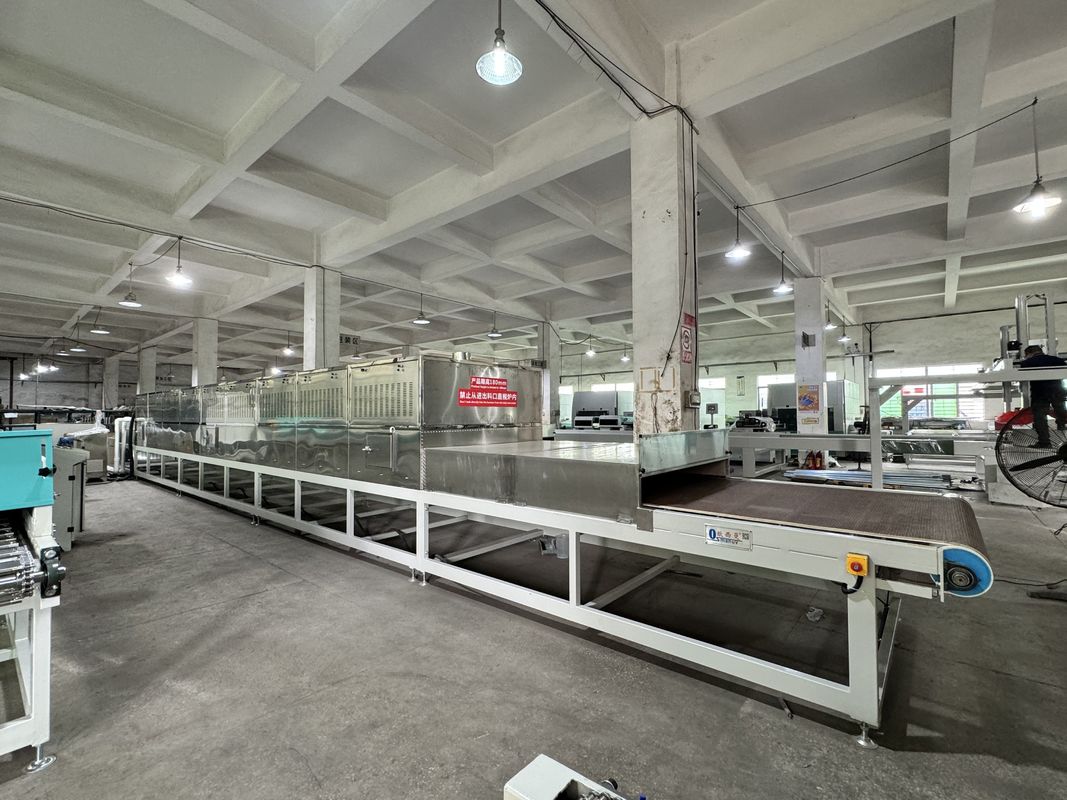

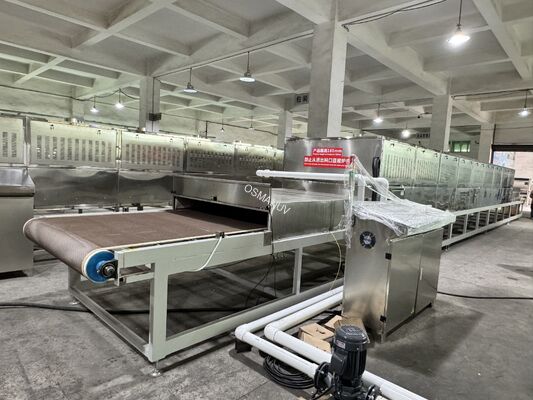

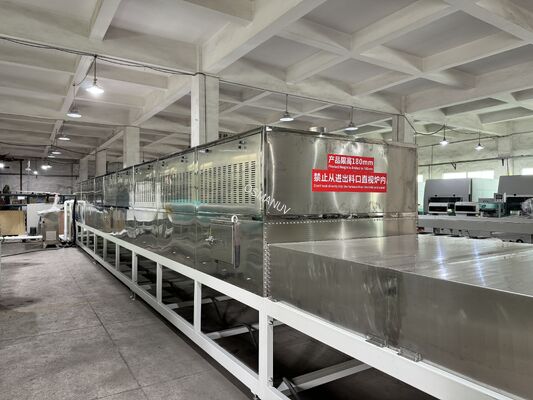

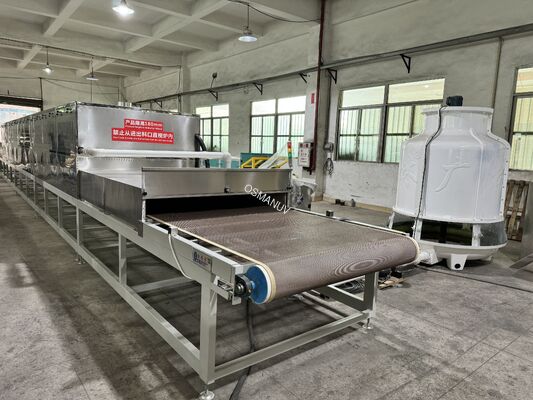

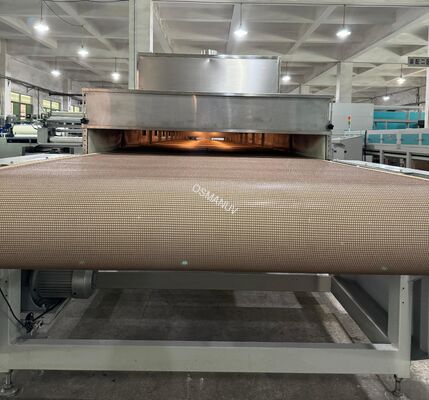

This advanced system includes a stainless steel feeding conveyor, a microwave sterilization tunnel, an intelligent temperature control unit, a post-drying cooling section, a PLC-based control panel with real-time monitoring, and an automated packaging interface. The entire line is fully customizable to include pre-treatment modules or integrated packaging solutions.
2. Product Description
Our food-grade microwave sterilization and drying system is engineered to eliminate harmful microorganisms while preserving the natural nutrition, texture, and flavor of food products. Using controlled microwave energy, it ensures uniform heating without overheating the surface, making it ideal for sensitive applications where quality cannot be compromised.
3. Technical Parameters
| Parameter | Details | Notes | ||
|---|---|---|---|---|
| Model | FMS-30 | FMS-60 | FMS-100 | Power customizable |
| Microwave Power | 30 kW | 60 kW | 100 kW | Adjustable in real time |
| Processing Capacity | 80–150 kg/h | 200–350 kg/h | 500–800 kg/h | Depends on product and moisture content |
| Belt Width | 600 mm | 800 mm | 1000 mm | Custom sizes available |
| Belt Speed | 0.5–10 m/min | Programmable via HMI | ||
| Sterilization Rate | ≥99.9% | Meets international food safety standards | ||
| Temperature Range | 40°C–110°C | Precision ±2°C | ||
| Power Supply | 380V/3Phase/50Hz (or configurable) | Custom voltage options |
4. Application
Suitable for:
-
Fruits and vegetables (e.g., dried mango, kale chips)
-
Meat and poultry products (e.g., jerky, cooked meats)
-
Dairy and powdered products (e.g., whey protein, milk powder)
-
Ready-to-e meals and ingredients
-
Herbs, spices, and grains
5. Customization
We offer tailor-made solutions to match specific product characteristics and factory requirements. Options include variable power zones, dedicated cooling sections, inline moisture sensors, and CIP (Clean-in-Place) systems.
6. Feature
-
Nutrient Preservation: Gentle drying avoids vitamin and pigment degradation.
-
Shelf Life Extension: Effective microbial reduction enhances product stability.
-
Hygienic Construction: All contact parts made of food-grade SS304/316.
-
User-Friendly Interface: Recipe storage and remote monitoring capabilities.
-
Energy-Saving: Up to 50% less energy compared to hot air systems.
7. Support and Services
We provide installation supervision, operational training, and ongoing technical support. Warranty includes 18 months for main components and lifelong maintenance guidance.
8. Packing and Shipping
Equipment is packed in anti-corrosion and shock-absorbent materials with reinforced wooden cases. Shipping documents and customs declarations are handled professionally.
9. FAQ
-
Q: Can this system handle heat-sensitive products like berries?
A: Yes, the precise temperature control prevents overheating while ensuring sterilization. -
Q: Is the system compliant with food safety regulations?
A: Absolutely. It meets FDA, CE, and EU requirements for food machinery. -
Q: How is the microwave leakage prevented?
A: Advanced sealing designs and safety interlocks ensure leakage is <5 mW/cm², well below limits. -
Q: Can I request a pilot test with my own materials?
A: Yes, we welcome sample testing and provide detailed analysis reports. -
Q: What level of customization do you offer?
A: From layout to software, we can adapt the system to your facility and product needs.
