24-Station High-Speed Spin Coating Line with Waterproofing for Pulp Molded Food Containers
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | OSMANUV |
| Certification: | ISO9001 |
| Model Number: | OSM-XT-1024T |
| Document: | Version 2.0 of 24-station s...on.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | WOOD PACKAGING |
| Delivery Time: | 30 days |
| Payment Terms: | T/T |
| Supply Ability: | Nedotiation |
|
Detail Information |
|||
| Condition: | New | Warranty: | 1 Year |
|---|---|---|---|
| Coating Speed: | Adjustable,150-500m2/h,0-5 Meters/min,2.5m/min | Coating Width: | 650mm,910mm Coating,440mm |
| Product Name: | 24 Stations Spin Coating Line | ||
| Highlight: | 24-station spin coating line,high-speed pulp molding coater,waterproof pulp container coating machine |
||
Product Description
24-Station High-Speed Spin Coating Line with Waterproofing for Pulp Molded Food Containers
Composition of Production Line
- Automatic Infeed Conveyor System

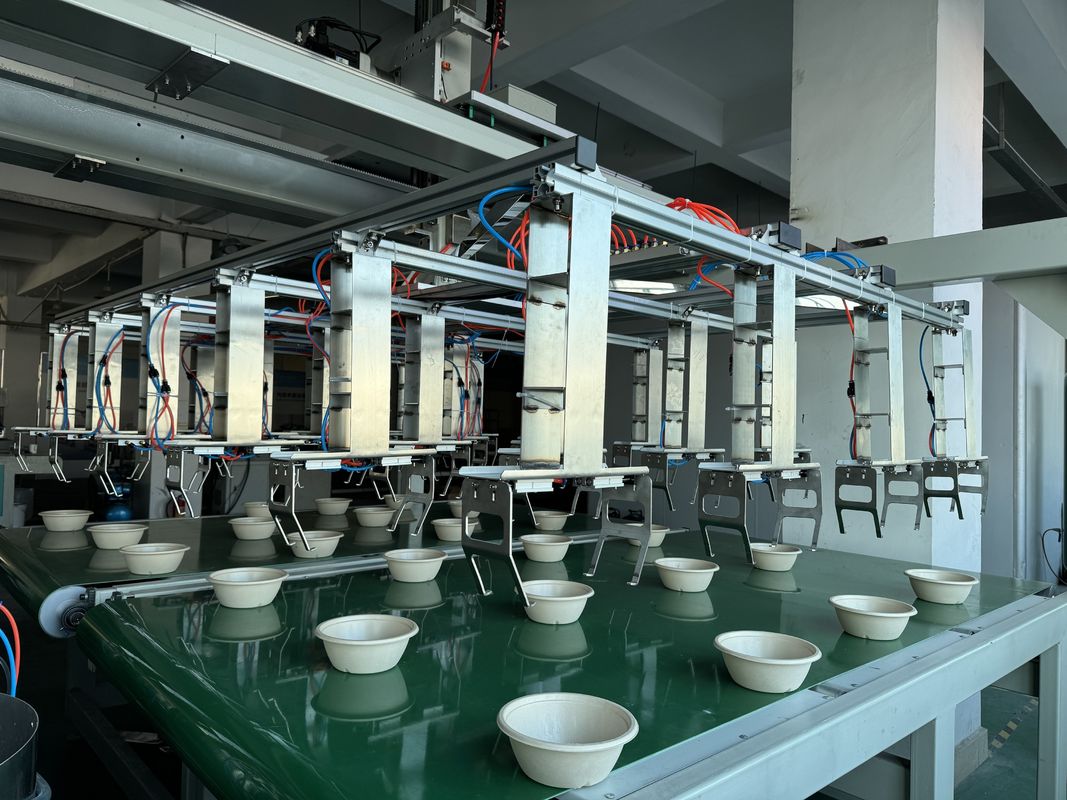

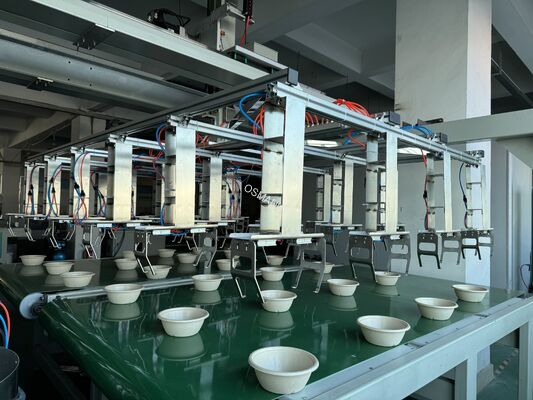

- Gantry Robot Loading/Unloading System

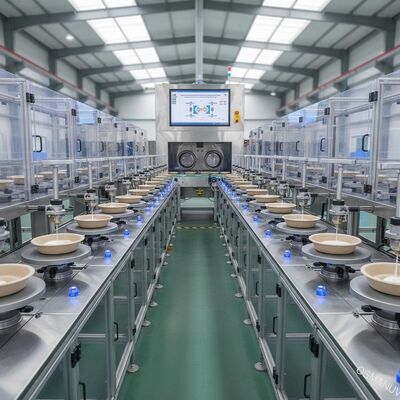

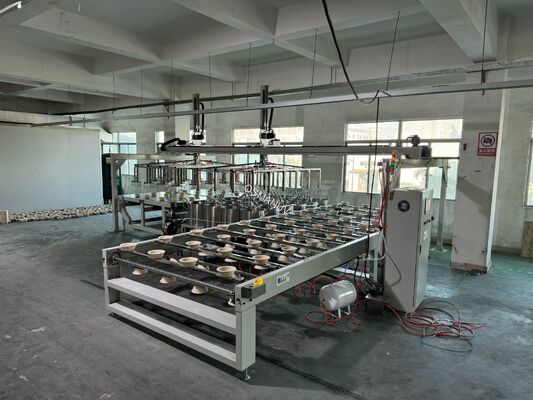

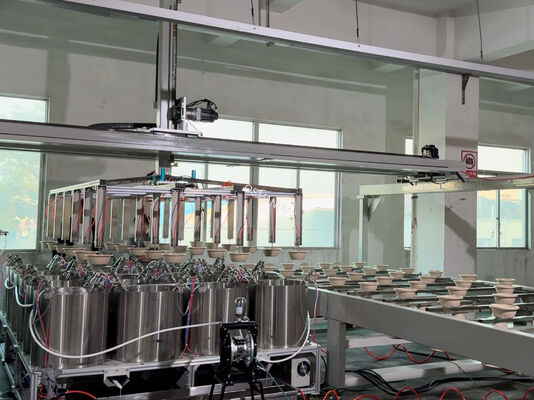

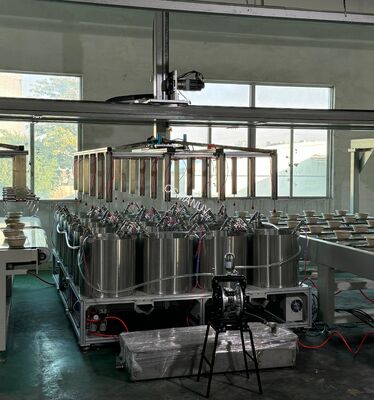

- 24-Station Rotary Spin Coating Unit
- Infrared (IR) Drying Tunnel
Product Description
This fully automated 24-station spin coating line integrates precision gantry robotics and rotary coating technology to apply uniform waterproof coatings to pulp molded food containers. The system ensures high-speed processing with IR drying for immediate moisture removal, delivering consistent quality and compliance with international food safety standards (FDA, EU).
Technical Parameters:
|
Parameter |
Description |
|---|---|
|
Product Name |
Automatic Spin Coating Device (24-stations) |
|
Model |
OSM-XT-1024T |
|
Size |
1020mm L × 2200mm W × 1080mm H (Based on actual size) |
|
Spray Room |
304 stainless steel |
|
Nozzle |
Taiyuan Changyuan fuel injection nozzle |
|
Pneumatic Components |
High-quality components from Airtek or SNS |
|
Rotation System |
Speed-regulating motor with built-in brake function |
|
Oil Supply System |
Pneumatic diaphragm pump for automatic oiling, precision voltage stabilization system |
|
Electrical Parts |
CHNT contactors, Taiwan Delta inverters, switches with Japanese Izumi switches |
|
Security System |
Over-temperature preventers, motor overload protection, control circuit fuses, emergency stop switches |
Application

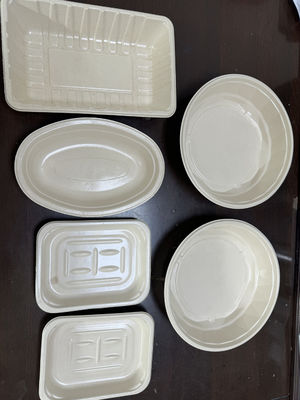

- Waterproof coating for pulp molded food containers (bowls, plates, cups)
- Moisture barrier for medical and electronic packaging
- Functional coatings for industrial packaging products
Customization
- Station Configuration: Customizable fixtures for special shapes
- Drying Options: Optional UV curing or hot air drying modules
- Control Integration: MES compatibility and data traceability
- Material Compatibility: Adaptable for water-based/solvent-based coatings
Feature
- High Efficiency: 24-station continuous operation increases output by 40%
- Precision Coating: Robot positioning accuracy ±0.1mm
- Energy Saving: IR tunnel reduces energy consumption by 30%
- Smart Control: Real-time monitoring of coating thickness and temperature
Support and Services
- Installation and commissioning supervision
- Operator training and process optimization
- Remote monitoring and troubleshooting
- 12-month warranty with lifetime technical support
Packing and Shipping
- Modular design for easy transportation
- Weatherproof wooden crates with shock absorption
- FOB Shanghai, CIF/FOB options available
- Lead time: 60-90 days after order confirmation
FAQ
- Q: Can the line handle different container sizes?
A: Yes, the gantry robot and coating fixtures are customizable for various dimensions. - Q: What is the energy consumption of the IR drying system?
A: The zoned temperature control reduces energy usage by 30% compared to conventional ovens.
