Product Details:

Place of Origin: China
Brand Name: Osmanuv
Certification: ISO9001
Model Number: OSM-LED-450T

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden box
Delivery Time: 20 work days
Payment Terms: T/T, Western Union
Get Best Price Contact Now

Detail Information

Product Name: LED Embossing Machine Power Supply: 380V 50HZ
Total Power: 7.5KW Dimensions: L:2500mm W:680mm H:1780mm
Weight: 280kg Working Width: 400mm
Feeding Speed: 1-10 M/min Feature: Energy Saving
High Light:

led uv curing systems for printing


7.5KW led uv curing systems for printing


uv coating and curing machine

Product Description

Heat Dissipation Light Conveyor UV/LED Curing Machine For Speaker Horns,Receivers,Earphones,Earplugs Factory
UV ultraviolet curing machine is suitable for micro speakers | electroacoustic industry | speaker horns, receivers, earphones, earplugs, optoelectronics, optical fibers, microelectronics assembly bonding | IC protection sealing | integrated circuit chips | glass plate wafers | lead bonding | bare Sheet sealing|electronic material assembly|UV curing adhesive bonding|surface coating|and encapsulation materials|optical adhesive bonding|reinforcement adhesive|and other UV light curing.

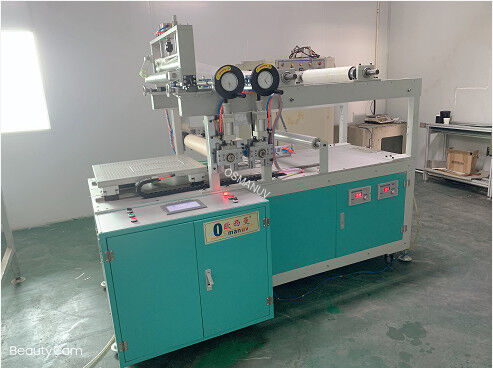

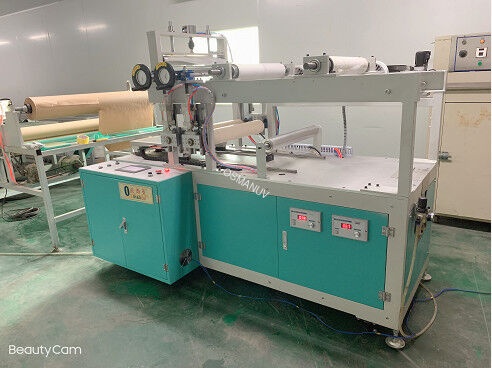

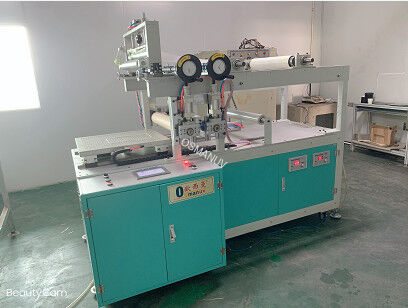

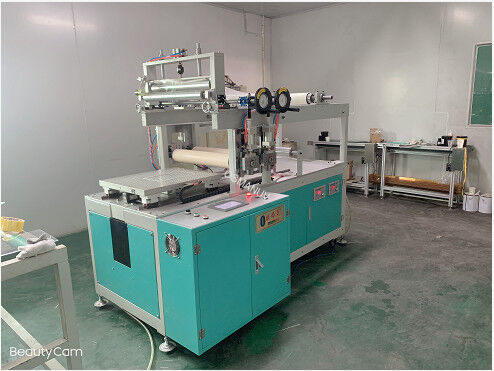

 1Product name:LED embossing machine

2500mm long × 680mm wide × 1780mm high.
(Can be customized according to actual requirements)



It is suitable for all kinds of wood, plastic, ceramics, calcium silicate board, metal and other planes covered with a layer of UV transfer film, so that the surface pattern of the board is clearer and more three-dimensional.

 5Conveying net width: 400mm.
 6Effective working size:

a, effective width: 450mm; b, thickness: 2-80mmc, length (shortest): 300mm..

 7Power supply voltage:360-410V 50HZ.


The shell is made of 1.5mm cold-rolled plate by bending and welding, the surface is treated with liquid paint, the frame is made of 100*50mm channel steel, and the support wall is made of 20cm steel plate (A3 material).
9Coating part:A single set of roller coating system is used, each set of systems consists of steel rollers and silicone wheels. And there is a pneumatic device to adjust the guide wheel, so that the paint is evenly coated on the film paper.
 10Lamination part:Double rollers are used to squeeze at the same time, so that the transfer film is evenly attached to the substrate, and the automatic entanglement device is used to prevent the film from wrinkling.
 11Coating roller:diameter: ¢205mm, length: 1430mm, made of Japanese high-quality rubber, wear-resistant, good elasticity, hardness can be customized according to customer requirements (30 degrees - 50 degrees), and can be resistant to various solvents. High-quality coupling drive, KHV bearings are used for bearings, and Taiwan Delta inverter controls the speed of the glue roller.
 12Measuring wheel:

diameter: ¢130 mm, length: 1430mm, 45# seamless steel pipe is welded by CO², the surface is finely ground, dynamic balance, the runout is less than 0.05mm, the surface is electroplated with hard chrome and polished to achieve a bright effect. The direct plug-in connection drive can truly achieve integration with the drive motor.

 LED part:Five sets of independent light boxes are used, equipped with 2 British PRIMARC gallium lamps, 1 iron lamp, and 2 mercury mercury lamps. The height and angle of the lamps can be adjusted.
 13UV lampshade:It adopts professional reflective material (German alanod reflective sheet) to reflect ultraviolet light, which is durable and greatly improves the utilization rate of ultraviolet light (it can be increased by more than 30%).
 14Control system:

a. The lamp has an independent control system, and has strong and weak light conversion, and the light intensity is divided into 75% and 100% adjustable.
b. The lamp is equipped with an LCD usage time recorder, which records the service life of the lamp and can be reset to zero.

 15Conveying method:It is spliced ​​with aluminum-laminated sheets, and the conveying is stable and the service life is long.
16Conveying speed:5-20m/min.
17Working height:0 ~ 850mm (the height of the belt from the ground), the height of the roller is equipped with a position display.
18Electrical appliances:OMRON relay Siemens motor, arctic reducer, Delta inverter, CHNT contactor, CKC brand for delay time, and Japan Izumi company for switches, all in line with CE standards.
19Safety device:This machine has leakage circuit breaker, motor overload protection, abnormal emergency switch, control line fuse, etc. in line with international safety standards.

7.5KW Led Uv Curing Systems For Printing , Uv Coating And Curing Machine 0
Q: Are you trading company or manufacturer?
A: We are a manufacturer owns foreign trade independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I know your machine has good quality?
A: Firstly, we will have your samples for a trial on our machines, and make a video for you to watch the testing, factory visit is also available. Moreover, our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Fully in accordance with the GMP & ISO standard production and our products have passed CE certification for exporting.
Q: What is your Quality Warranty?
A: One year warranty; Lifelong Maintenance and Technical Support.
