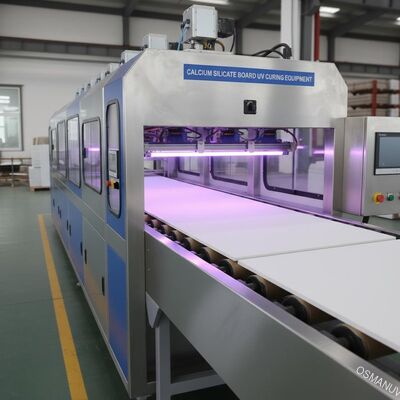

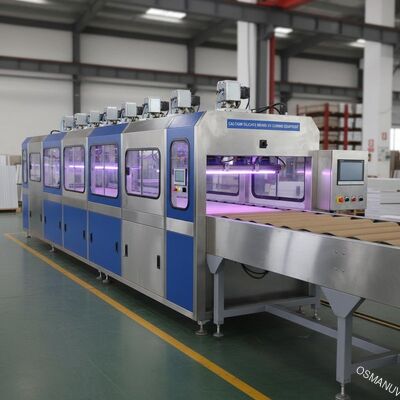

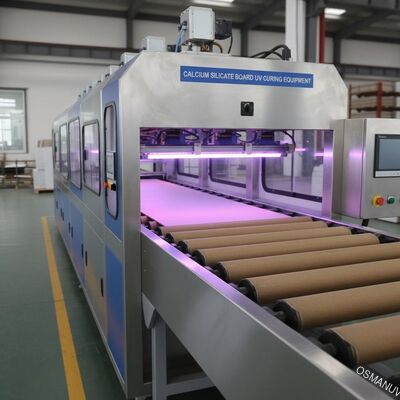

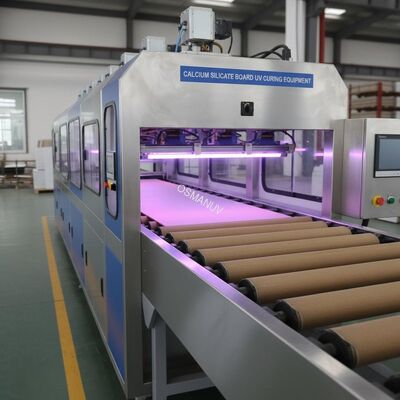

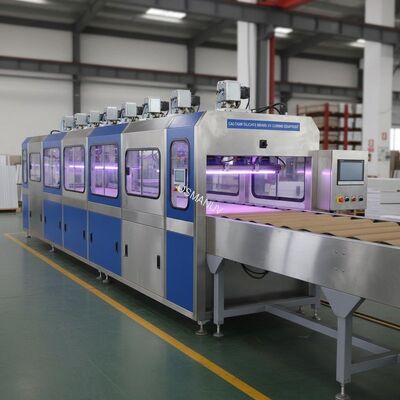

Calcium Silicate Board UV Curing Equipment 3 - 10m/min

Calcium Silicate Board UV Curing Equipment 3 - 10m/min

Product Details:

Place of Origin: China
Brand Name: Osmanuv
Certification: ISO9001
Model Number: OSM-FY-1300

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden box
Delivery Time: 30 WORK DAYS
Payment Terms: T/T, Western Union
Get Best Price Contact Now

Detail Information

Product Name: UV Film Pressure Curing Machine Size: L:4000mm×W:2340mm×H:1850mm
Supply Voltage: 360-410V 50HZ Speed: 3-10m/min
Color: Computer White / Green Transmission Mode: Roller And Belt For Transmission, Smooth Transmission And Long Service Life
Feature: Energy Saving
High Light:

Calcium Silicate Board UV Curing Equipment


10m/min UV Curing Equipment


3m/min UV Curing Unit

Product Description

Pressure Calcium Silicate Board UV Curing Machine Stainless Steel Type Machine For wet board Manufacturer



Traditional oven-type glue curing solutions are already facing challenges. The long curing time and low-precision curing make it difficult for many manufacturers to increase the added value of their products. High temperature also poses challenges to many products. The high imitation characteristics have also made the industry linger. At the low end. People urgently need a new curing program, and UV curing program came into being.



 1 Features: Suitable for coating PC, acrylic, plastic, ceramic, calcium silicate board, metal and other planes with transparent UV varnish to make the surface coating of the board flatter and smoother.
 2 Mechanical dimensions:

4000mm long × 2340mm wide × 1850mm high.

(According to the actual size).

 3 Effective working size: a, effective width: 1300mm; b, thickness: 2-80mmc, length (shortest): 250mm.
 4 Power supply voltage 360-410V 50HZ.
 5 Material: The shell is made by bending and welding 1.5mm cold-rolled plates, the surface is treated with liquid paint, the frame is made of 63*30mm channel steel, and the supporting wall is made of 20cm steel plate (A3 material).
 6 Laminating part Double rollers are used to squeeze at the same time, so that the transfer film is evenly attached to the substrate, and the automatic entanglement device is used to prevent the film from wrinkling.
 7 Laminated rubber roller: diameter: ¢80mm, length: 1400mm, made of high-quality Japanese rubber, wear-resistant, good elasticity, hardness can be customized according to customer requirements (between 30 degrees-50 degrees), and can withstand various solvents It adopts high-quality coupling transmission, the bearing adopts NSK bearing, and Taiwan Delta servo controller controls the speed of the rubber roller.
 8 UV part: Two sets of independent light boxes are used, equipped with 2 British PRIMARC mercury lamps, and the height and angle of the tube can be adjusted.
 9 UV lampshade: using professional reflective material (German alanod reflector) to reflect ultraviolet light, durable and greatly improve the use rate of ultraviolet light (more than 30%).
 10 Control system:

a. The lamp has an independent control system, and has strong and weak light conversion. The light intensity is divided into 75% and 100% adjustable.

b. The lamp is equipped with an LCD usage time recorder, which records the service life of the lamp and can be reset to zero.

 11 Conveying speed: 3-10m/min.
 12 Working height: 0~850mm (the height of the belt from the ground), the height of the roller is equipped with a position indicator.




Q: Are you trading company or manufacturer?
A: We are a manufacturer owns foreign trade independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I know your machine has good quality?
A: Firstly, we will have your samples for a trial on our machines, and make a video for you to watch the testing, factory visit is also available. Moreover, our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Fully in accordance with the GMP & ISO standard production and our products have passed CE certification for exporting.
Q: What is your Quality Warranty?
A: One year warranty; Lifelong Maintenance and Technical Support.
