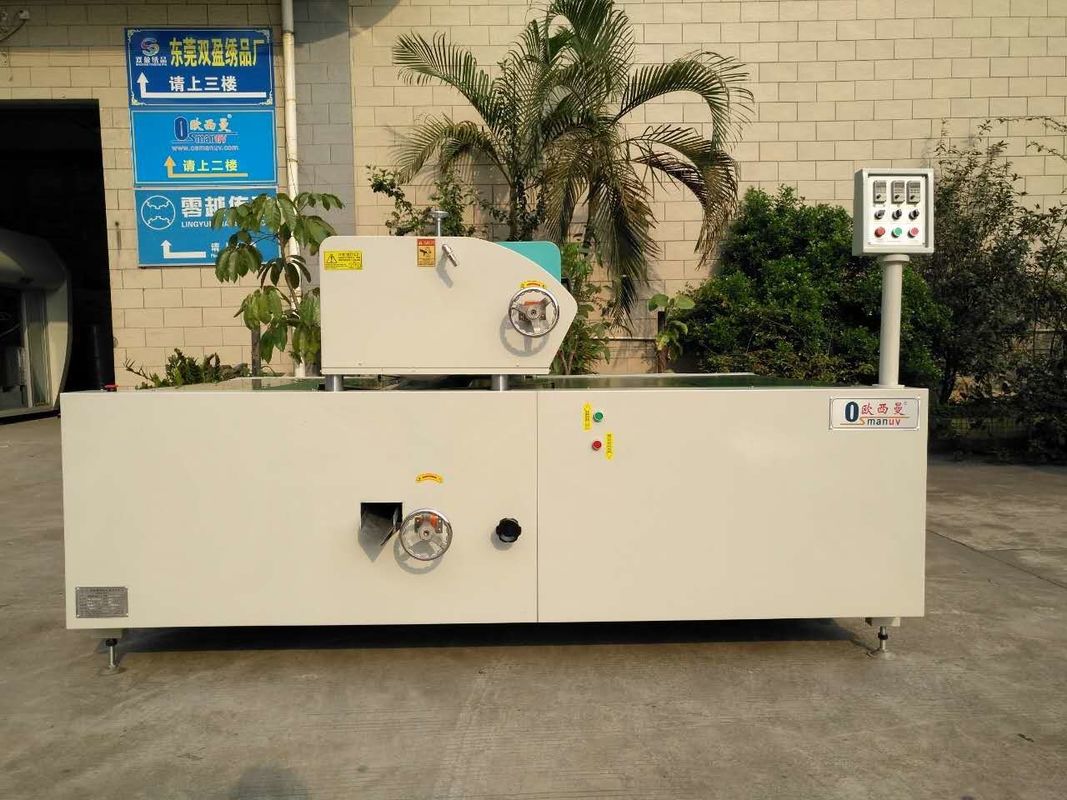

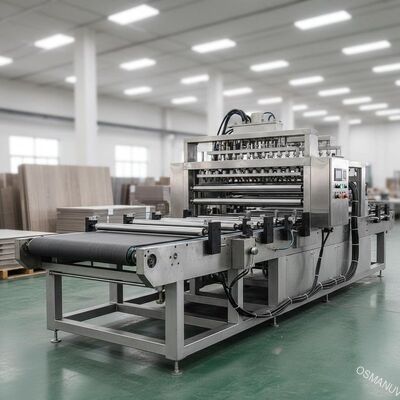

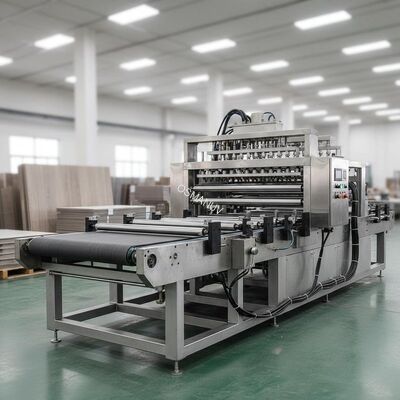

8KW Roller Coating Equipment For PVC Floor Laminating
Product Details:
Place of Origin: | CHINA |
Brand Name: | Osmanuv |
Certification: | ISO9001 And CE |
Model Number: | OSM-LM-1320T |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 Set |
---|---|
Price: | Negotiable |
Packaging Details: | Wooden Box |
Delivery Time: | 35-45 Working days |
Payment Terms: | T/T, Western Union |
Supply Ability: | According to customer's demand |
Detail Information |
|||
Product Name: | PVC Floor Laminating Macine | Color: | Computer White / Green |
---|---|---|---|
Size: | 2800mmx2320mmx1400mm | Power: | 8KW |

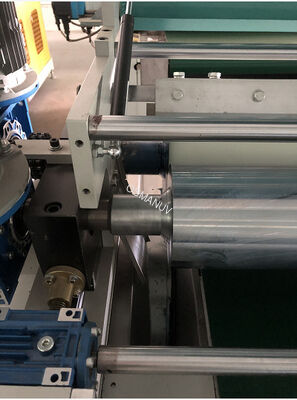

Conveying Part: | Green PVC Plane Conveyor Belt, Divided Into Two Sections, Synchronous Transmission, Coating Head With Mirror Steel Roller Below The Product Transmission, Control Motor Is 1.5KW, Reducer And Mirror Roller Made Of Straight Into Type | ||
Highlight: | 8KW Roller Coating Equipment,PVC Floor Laminating Roller Coating Equipment,8KW Roller Coating Machine |
Product Description
High Precision Shower Coating Machine PVC Floor Laminating Macine
Description:
The curtain coating machine (coating equipment, curtain curtain machine) is professionally designed and manufactured for the top coating and color change of flat profiles such as bamboo and wood floors, pvc gussets, furniture countertops, etc. The coating surface is flat and uniform, without horizontal stripes, and coating The cloth wheel and the conveyor belt are manually adjusted, and the distance can be adjusted according to the thickness of the material. It is accurate and easy to operate. Two (or one) coating wheels and conveying use separate DC speed-regulating motors, and the speed can be adjusted arbitrarily (double-roll coating According to customer needs, double-roller forward or double-roller forward and reverse) can be adopted to make the paint thickness and surface smoothness higher and easier to control. The treated paint film has a smooth surface, good plumpness, no build-up of paint before and after, and the effect of spray coating is almost the same, but the thickness of the topcoat is reduced, which greatly reduces the amount of topcoat used; customers and friends are warmly welcome to inquire.
Information
1 | Power supply | 380V/ 50Hz three-phase five-wire system |
2 | Furnace shell is made of | 2.0 cold-rolled plate bending and welding, the surface is sprayed with powder and baking paint. |
3 | Conveyor belt | PVC belt from Holland, with corrosion resistance, oil resistance, easy cleaning and other characteristics. |
4 | Belt conveying speed: | 1-15m/min, stepless speed regulation. |

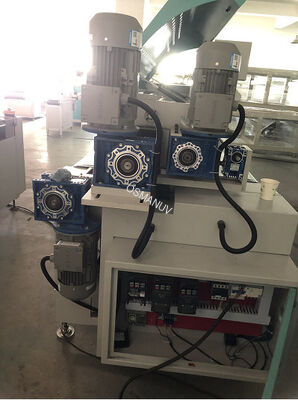

5 | Conveying system: |
using Taiwan Wanxin gear motor as the conveying power. |
6 | Drenching screen cutter head: | using unique scallop type diagonal support structure, simple and convenient to adjust and disassemble after use and clean |
7 | Transmission bearing | Japanese NSK imported bearing, good sealing, prevent paint penetration. |
8 | Oil collector: | the 2.0 t 304 # stainless steel plate welding and become, built-in five floors high efficiency filter, effective filtering paint carried by the impurities in the reflow process, the tank configuration constant temperature heating system at the same time, the temperature can be set free (typically set to 60 ℃) to ensure the stability of the paint, while the tank is equipped back buffer system, can effectively eliminate the generation of air bubbles. |
9 | Electrical parts: | Delta frequency converter, CHNT contactor, Japan and the spring switch in line with international standards of famous brand electrical appliances. |
10 | Control panel | power indicator, start switch, stop switch, oil pump switch, electric heat switch, abnormal emergency switch, etc. |
11 | Safety device: | leakage circuit breaker, motor overload protection, abnormal emergency switch, control line fuse, etc., in line with international safety standards. |
12 | Conveying direction: | from left to right, (facing the operating surface, feeding direction from left to right). |
Performance purpose:
1 | This machine saves time and effort, is environmentally friendly, and greatly improves production efficiency; |
2 | The surface of the board processed by this machine has no orange or pull marks, and the coating effect is good; |
3 | The transmission work is independent of motor frequency conversion speed regulation, which is more accurate in use; |
4 | The surface of the product processed by this machine is smooth, fullness is good, and there is no pile of paint before and after; |
5 | Equipped with imported oil and gas pump, the paint can be recycled through the oil tank, almost no waste; |
Specifications:
Size |
2800mm long * 2200mm wide * 1400mm high, belt height from the ground: 850-900mm adjustable. |
Total weight of machine | 980 kg |
Width of spraying | 1320 mm |
Processing thickness | 3-80mm |
Minimum machining length | 300mm |
Transmission power | 2.2KW |
Oil pump power | 2.2KW |
Paint dosage | 60 ~ 200 g/㎡ |
Oil drum capacity | 20kg |
Power supply | 380V/ 50Hz three-phase five-wire system |
FAQ
Q: Are you trading company or manufacturer?
A: We are a manufacturer owns foreign trade independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I know your machine has good quality?
A: Firstly, we will have your samples for a trial on our machines, and make a video for you to watch the testing, factory visit is also available. Moreover, our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Fully in accordance with the GMP & ISO standard production and our products have passed CE certification for exporting.
Q: What is your Quality Warranty?
A: One year warranty; Lifelong Maintenance and Technical Support.
