Product Details:

Place of Origin: CHINA
Brand Name: Osmanuv
Certification: ISO9001 And CE
Model Number: OSM-PT-1320-Ⅰ

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden Box
Delivery Time: 35-45 Working days
Payment Terms: T/T, Western Union
Supply Ability: According to customer's demand
Get Best Price Contact Now

Detail Information

Product Name: Putty Machine (filler) Size: 1600mm Long X 2300mm Wide X 1520mm High. (According To Actual Size)
Effective Working Size: A, Effective Width: 1320mm; B, Thickness: 3-80mm C, Length (shortest): 300mm Color: Computer White + Grass Green
Material: The Shell Is Made Of 1.5mm Steel Plate By Bending And Welding, The Surface Is Treated With Liquid Paint, And The Support Wall Is Made Of 20cm Steel Plate (A3 Material) Weight: 450kg
Highlight:

1.5mm reverse roll coater

,

2.2KW reverse roll coater

,

2.2KW digital spot uv coater

Product Description

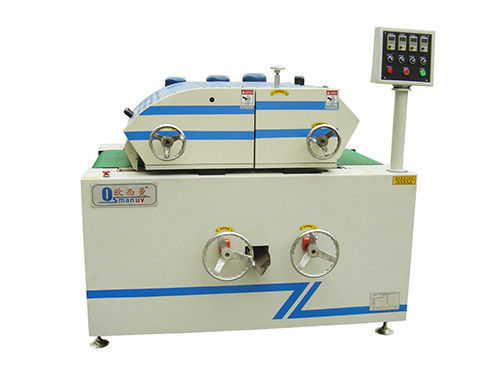

1.5mm Steel Plate 2.2KW Conveyor Digital Spot Uv Reverse Roll Coater



Description:

1 This machine is specially designed for filling panel furniture, solid wood floor, wooden doors, handicrafts, new building materials (such as calcium silicate board, cement fiberboard, etc.) for uneven surfaces. The filling is determined according to the surface flatness. The number of times (recommendation: according to different product processes, sanding is recommended after putty coating)
2 The steel wheels and rubber wheels of this machine are controlled by independent motors and frequency converters, with precise speed, and the thickness of the coating putty can be adjusted arbitrarily.
3

Both sides of the machine adopt skeletal reinforced steel plates to make the machine more stable and better coating quality.


4 The machine is equipped with imported MDC scraper on the reversing steel wheel, and the angle is adjusted by the miniature worm gear reducer.
5 The putty coated by this machine has a smooth surface and uniform coating, which greatly improves production efficiency and saves labor.





description:

 1 Mechanical dimension: 2100 long × 2300mm wide × 1520mm high.(Subject to actual size)
 2 Effective working size: a. Effective width: 1320mm; b, thickness: 3-80mm c, length (shortest) : 300mm..
 3 Working height: 850-900mm (belt height from the ground).
 4 fill roller:

diameter: ¢240mm, power: 1.5KW, length: 1420mm.



The 45# seamless steel tube is welded by CO², the surface is finely ground, the dynamic balance is done, the runout is less than 0.05mm, the surface is plated with hard chrome and polished to achieve the bright effect.

Direct plug - in connection drive, can really achieve with the drive motor combined into one.

 5 cots:

the diameter: ¢240mm, length: 1420mm, Japanese high-quality rubber production, wear resistance, good elasticity, hardness can be customized according to customer requirements (30 degrees - 50 degrees) between, can resist all kinds of solvents.

 6 Metering wheel:

diameter: ¢150mm, length: 1420mm, using 45# seamless steel tube by CO² welding, surface fine grinding, do dynamic balance, runout is less than 0.05mm, the surface by hard chrome plating and polishing to achieve bright effect.Direct plug - in connection drive, can really achieve with the drive motor combined into one.

7 conveyor roller:

power: 2.2KW, diameter: ¢130mm, length: 1320mm.



The 45# seamless steel tube is welded by CO², the surface is finely ground, the dynamic balance is done, the runout is less than 0.05mm, the surface is plated with hard chrome and polished to achieve the bright effect.

Direct plug - in connection drive, can really achieve with the drive motor combined into one.

8 Material

The shell is made of 1.5mm steel plate bending and welding, the surface is treated with liquid paint, and the supporting wall is made of 20cm steel plate (A3 material).

9 Transmission system:

Adopts Dutch imported plane anti-skid PVC belt, 5-20m/min adjustable, adopts high-quality coupling transmission, bearing adopts KHV bearing, Delta frequency converter control.

10 Control system six sets of driving power are used to drive the speed separately.

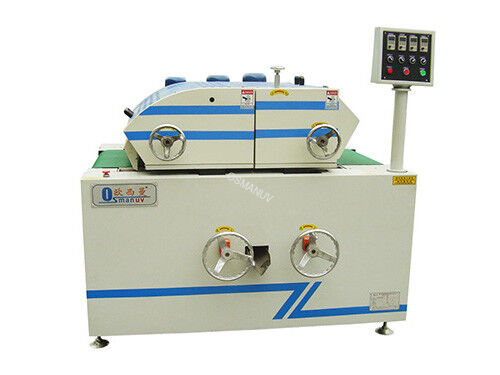

1.5mm Steel Plate 2.2KW Conveyor Digital Spot Uv Reverse Roll Coater 0



FAQ


Q: Are you trading company or manufacturer?
A: We are a manufacturer owns foreign trade independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I know your machine has good quality?
A: Firstly, we will have your samples for a trial on our machines, and make a video for you to watch the testing, factory visit is also available. Moreover, our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Fully in accordance with the GMP & ISO standard production and our products have passed CE certification for exporting.
Q: What is your Quality Warranty?
A: One year warranty; Lifelong Maintenance and Technical Support.
