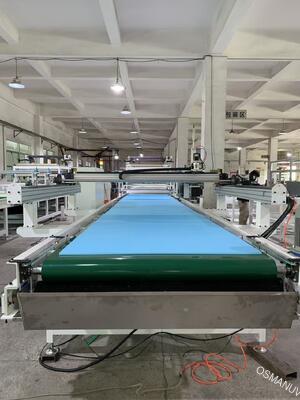

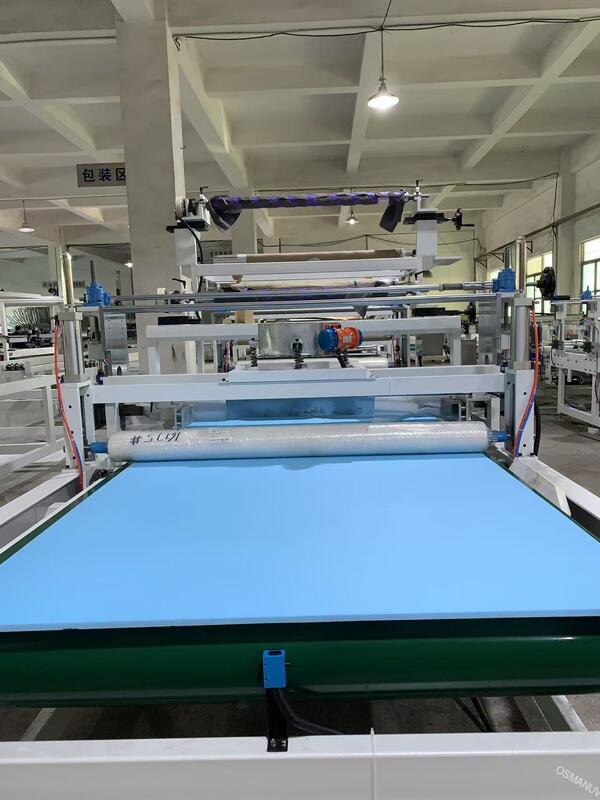

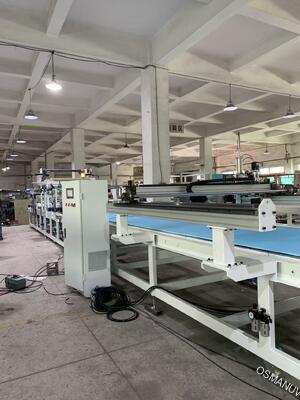

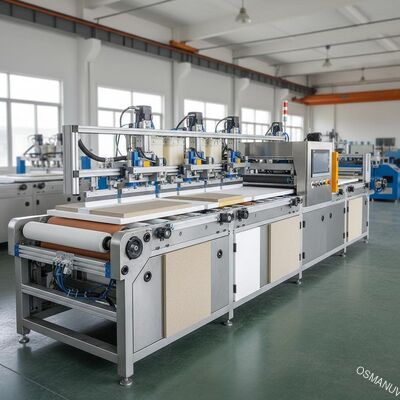

High-Speed & Durable Automatic Knife Coating Line for XPS & Foamed Ceramic Boards - Designed for Continuous Large-Scale Production
Product Details:
| Place of Origin: | China |
| Brand Name: | OSMANUV |
| Certification: | ISO9001 |
| Model Number: | OSM-GT-620 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Box |
| Delivery Time: | 30~45 Days |
| Payment Terms: | T/T |
| Supply Ability: | Negotiation |
|
Detail Information |
|||
| Feeding Speed: | 5-20m/min | Total Power: | 21.5KW |
|---|---|---|---|
| Drying Type: | IR Drying | Color: | You Can Decide |
| Machinery Test Report: | Provided | Machine Name: | Heavy Putty Machine |
| Paper Thickness: | 80-600gsm | Packaging Material: | Wood,Plastic,Metal,Paper,Glass |
| Highlight: | automatic knife coating line for XPS,durable roller coating equipment for foamed ceramic,high-speed coating machine for large-scale production |
||
Product Description
High-Speed & Durable Automatic Knife Coating Line for XPS & Foamed Ceramic Boards - Designed for Continuous Large-Scale Production
Product Description:
This robust automatic knife coating line is engineered for high-volume, uninterrupted production of coated XPS (extruded polystyrene) and foamed ceramic boards. It focuses on durability, consistent coating quality, and maximum uptime, making it ideal for standard-sized panel manufacturers with large order volumes.
Technical Parameters:
| Item | Parameter | Remarks |
|---|---|---|
| Coating Width | 600mm, 1200mm, Customizable up to 2400mm | Standard sizes available |
| Line Speed | 5-25 meters/minute | Adjustable frequency control |
| Coating Thickness | 0.5mm - 3.0mm | Precision adjustable knife head |
| Drying/Curing | Multi-zone hot air circulation oven | Temperature range: RT-120°C, Customizable |
| Total Power | Approx. 80-200 kW | Depends on configuration |
| Control System | PLC with HMI touch screen | Basic automation |
| Accuracy | Coating thickness tolerance ±0.1mm |
Composition of Production Line:
Automatic board feeder, Pre-cleaning/Ionizing unit, Precision knife coater, Multi-zone drying/curing oven, Cooling section, Automatic stacker/turnover unit, PLC control cabinet, Conveyor system.
Application:
Primarily for coating standard XPS insulation boards and foamed ceramic panels for building facades, roofs, and interior walls in large-scale projects.
Customization:
Line speed, coating width, oven length and heat source (electric, gas, steam), and conveyor type can be customized to suit specific factory layouts and output goals.
Feature:
Heavy-duty construction for 24/7 operation, high-speed capability, easy maintenance access, and energy-efficient drying zones ensure low cost per unit produced.
Support and Services:
Installation supervision, operator training, 12-month warranty, remote technical support, and spare parts supply.
Packing and Shipping:
Modular disassembly, wrapped in plastic film and packed in wooden crates for sea freight. FOB or CIF terms available.
FAQ:
Q: What is the lead time?
A: Typically 30-45 days after order confirmation for standard models.
Q: Can it handle different board thicknesses?
A: Yes, conveyor height and coater gap are easily adjustable.
Q: Is training provided?
A: Yes, comprehensive on-site training is included.
