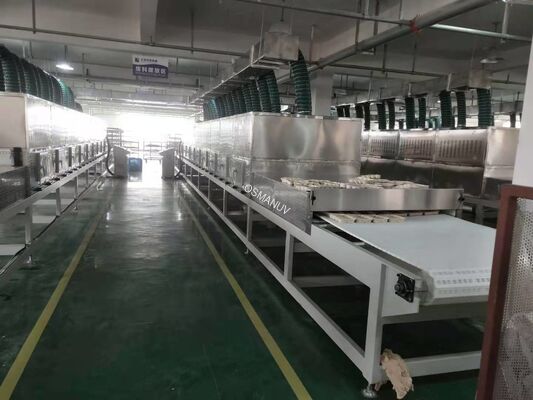

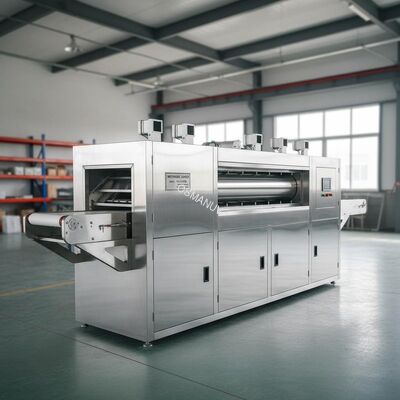

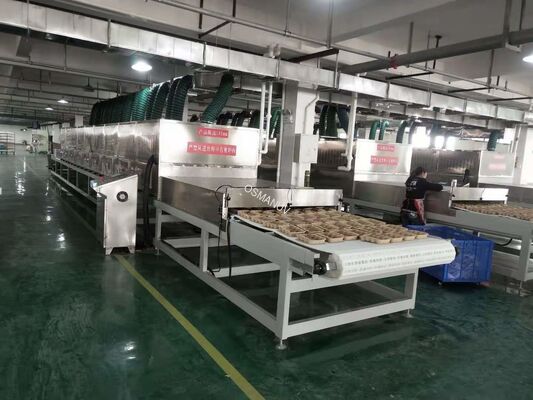

Microwave Vacuum Drying Equipmen Min Food Drying Machine vacuum drying machine Factory
Product Details:
| Place of Origin: | China |
| Brand Name: | Osmanuv |
| Certification: | ISO9001 |
| Model Number: | OSM-WBHG-1320YP |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden box |
| Delivery Time: | 45-60 WORK DAYS |
| Payment Terms: | T/T, Western Union |
|
Detail Information |
|||
| Product Name: | Microwave Infared Dryer | Conveyor Belt Line Speed: | 1-10m/min, Adjustable By Frequency Conversion |
|---|---|---|---|
| Conveyor Belt:: | Use Plastic Conveyor Belt (PP White Tank Chain Conveyor Belt) To Drive | Width: | 1320mm |
| Magnetron Cooling Method: | Water Cooling | Dimensions (L×W×H): | 17530mm×1600mm×1100mm |
Product Description
Description:
Technical parameters of microwave dryer
1. The height of the conveyor belt of the whole production line from the ground is: 850mn, which can be adjusted by ±50m,
2. The conveying drive system is driven by a servo motor.
3. The conveyor belt is driven by a plastic conveyor belt (PP white tank chain conveyor belt), with a width of: 1320mm
4. Operation direction of the production line: people face the operation panel and transmit from left to right
5. Conveyor belt line speed: 1-10m/min, and can be adjusted by frequency conversion.
6. The maximum power of each harmonic cavity at both ends of the inlet and outlet is less than 6KW.
Flow Description
B: Microwave heating system
(1) Microwave heating is a heating method that relies on the material to absorb microwave energy and convert it into heat energy, so that the material itself is heated at the same time. Because of its high-frequency characteristics, the full wave electromagnetic field is carried out at an amazing speed of billions of times per second. Periodically, after the polar molecules in the material (typically water molecules, proteins, nucleic acids, fats, carbohydrates, etc.) absorb microwave energy, they are arranged in an orderly manner under the action of the microwave electromagnetic field, changing the original Randomly distributed orientation. Under the action of high-frequency electromagnetic field, these polar molecules also make electric field polar motion with the change of alternating electromagnetic field at the same speed, which will cause the movement and rotation of molecules, resulting in frequent collisions between molecules and a lot of friction. Heat, and manifests itself in the material in the form of heat, which leads to a rapid increase in the temperature of the material in a short period of time and rapid drying of water molecules.
(2) Material: 1.5mm SUS 304# stainless steel plate, conforms to microwave production standards, solvent resistant and easy to clean
(3) Features of microwave heating:
a: Penetrating heating, fast heating speed; its penetration distance, microwave heating makes the heated object itself become a heating object, which is called the overall heating method, which does not require heat conduction process, so it can be heated in a short time. When microwave heating, regardless of the shape of the object, each part of the object can usually penetrate the electromagnetic wave uniformly, causing the water molecules inside the object to collide and squeeze each other to generate heat, so that the water inside the object evaporates quickly to achieve the effect of quick drying.
b: Uniform heating: During microwave heating, regardless of the shape of the object, each part of the object can usually penetrate the microwave uniformly to generate heat. Therefore, the uniformity is greatly improved, which can avoid the phenomenon of external coke ingrown, external dry and internal wet, and improve product quality
C. Air cooling system
(1) A square exhaust fan can be used to accelerate the cooling of the baked products with natural wind and shorten the time to enter the next process.
| Model number | OSM-WBHG-1320 water-based paint drying production line | ||
| Input power | Three-phase five-wire 380V±10% 50Hz±2% (the zero line must be the same size as the phase line) | ||
| Rated input power | Microwave≤35kVA | ||
| Microwave output power | ≥85KW | Adjustable power | |
| Microwave frequency | 2450MHz±50Hz | ||
Dimensions | 17530mm×1600mm×1100mm | ||
| Number of boxes size: | Cabinet: 9 | Width: 1170mm | |
| Suppressor size: | Suppressor length: 2000mm opening height: 180 mm | ||
| Microwave energy feeding method | Top feed | Aluminum waveguide | |
| Use environment temperature | 0～40℃ | Relative humidity≤80% | |
| Use environment | No corrosive gas around, no conductive dust and explosive gas | ||
| Magnetron cooling method | Water cooling | ||
| Microwave power supply cooling method | Oil-soaked and water-cooled | ||
| Operation control system | PLC programming control with luxurious buttons (with microwave, transmission, temperature control instruments) | ||
| Surveillance system | The microwave box has a built-in camera, and the operator can see the working status of the product through the display | ||
| Microwave tube | Adopt Japanese Panasonic or TOSHIBA brand | ||
| Power Controller | Oil-immersed microwave power controller (30%-100% adjustment) | ||
| Microwave leakage safety | Comply with GB 10436-1989 hygiene standard for microwave radiation in workplace | ||
| Food machinery hygiene and safety | Comply with GB 16798-1997 mechanical health and safety indicators | ||
| Mechanical and electrical equipment safety | Comply with GB/5226.1-2002 mechanical safety mechanical electrical equipment | ||
| Safety of electric heating device | Comply with GB 5959.6-2008 Safety Part 6 of Electric Heating Device | ||
| Total input power of equipment | Around 85KW | ||
| Microwave output power: | 85KW | ||
| Temperature control during drying process of water-based paper tray | Increase from room temperature to about 80℃ | ||
| cooling method: | Magnetron water cooling, microwave electronic power transformer oil immersion water cooling (water volume and water pressure protection system) | ||
| Magnetron life: | Continuous work is greater than or equal to 6000-8000 hours | ||
| control method: | Independent console, 1 Delta PLC controller, 1 set of Weilun touch screen system, | ||
| Turn on and turn off the whole machine: | Set emergency stop switch, turn on or turn off all functions of the whole machine | ||
| Magnetron wire | Need more than 4 square wires | ||
| Microwave power control; | According to process requirements, the microwave power can be adjusted freely | ||
| conveyor: | Using PP plastic conveyor belt (tank chain conveyor belt) transmission, width: 1320mm | ||
| Conveyor belt speed: | 1-10m/min, Delta inverter speed is adjustable | ||
FAQ
Q: Are you trading company or manufacturer?
A: We are a manufacturer owns foreign trade independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I know your machine has good quality?
A: Firstly, we will have your samples for a trial on our machines, and make a video for you to watch the testing, factory visit is also available. Moreover, our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Fully in accordance with the GMP & ISO standard production and our products have passed CE certification for exporting.
Q: What is your Quality Warranty?
A: One year warranty; Lifelong Maintenance and Technical Support.
